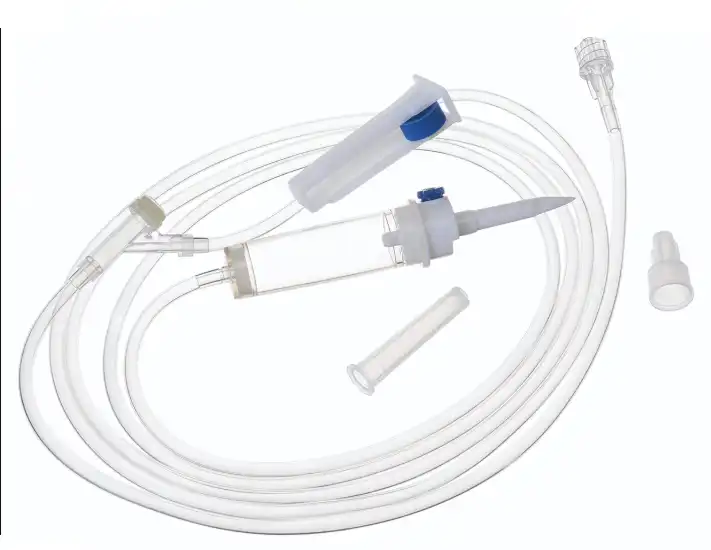

A standard IV infusion set–1.2m 20 drops/ml is a sterile, single-use medical device designed for gravity-driven delivery of parenteral fluids and medications directly into a patient's vascular system. The 1.2-meter tubing length reduces priming volume and minimizes dead space, making it the clinical standard for bedside therapy. Its drip chamber is precision-molded to deliver exactly 20 drops per milliliter (±0.1ml), conforming to ISO 8536-4, which allows nursing staff to calculate infusion rates accurately without electronic pump programming. This configuration addresses three persistent hospital challenges: dosage errors, hospital-acquired infections, and unnecessary fluid waste.

Understanding the Standard IV Infusion Set 1.2m 20 Drops/ml

What the "20 Drops/ml" Metric Actually Means?

The 20-drops-per-ml drip factor is a macro-drip range. This means that for every 20 drops that fall through the tube, exactly one milliliter of fluid is sent. This ratio makes calculations easier at the bedside: if a doctor orders 100 ml/hour, the flow is set to 33 drops per minute by the nurse. The World Health Organization says that medication errors are one of the top five causes of avoidable harm to patients. This mathematical clarity cuts down on those errors.

How the Drip Chamber and Flow Regulator Work Together

The drip chamber is above the main tube and below the spike with the holes in it. Fluid comes in, separates into drops, and falls into a small reservoir. A roller clamp further down the line lets the person using it squeeze the tube to slow or stop the flow. This gravity-based mechanism doesn't need a power source, which is helpful in places like South Asia, Sub-Saharan Africa, and the Middle East where power isn't always reliable.

Why 1.2 Meters Is the Clinical Standard Length?

The 1.2m tube length is just the right length for both reach and speed. It's long enough that an adult patient who is bedridden can move without the needle coming loose, but short enough that it limits the prime volume, or the amount of fluid that needs to be added to the line before it gets to the patient. The shorter tube loses less medicine during priming than a 1.5m set, which is very important when giving expensive drugs.

Key Specifications and Standard Features

Materials, Components, and Construction

The gravity injection set from AVACARE is made of medical-grade PP, PE, PVC, or DEHP-free polymers. The clear tube makes it easy to check for air bubbles directly. A vented piercing spike that works with both flexible IV bags and hard glass bottles, a macro-drip chamber, a 15-micron fluid filter, a precision roller clamp, and either a Luer Slip or Luer Lock connection are some of the most important parts. Each unit is sterilized with Ethylene Oxide (EO) gas, which has a Sterility Assurance Level of 10°°.

Certifications That Matter for Import Clearance

Documentation is a must for wholesale wholesalers who bring goods into controlled markets, including the standard IV infusion set–1.2m 20 drops/ml. AVACARE is registered with the FDA, has CE marking, and ISO 13485 quality management certification. These credentials meet the requirements of customs in the EU, the GCC, South Asia, and Africa. Without CE and ISO 13485 paperwork, shipments can be held up or turned away at the port, which costs a lot and slows down hospital supply chains.

How Certifications Reflect Product Consistency?

ISO 13485 is more than just a piece of paper. It tells us how to record, test, and release each production batch. The 12,000 m² factory that AVACARE uses has Class 100,000 cleanrooms, and the company has 7 national patents on medical gadget technology. With this set up, a distributor who orders 500,000 units in January will get the same level of drip accuracy as someone who places a second order six months later.

Comparing IV Infusion Set 1.2m 20 Drops/ml with Other Options

1.2m vs. 1.5m Tubing Length

Which tube length to use relies on how mobile the patient is and how much the medicine costs. A 1.5m set is best for people in recovery wards who can walk and need more room to move. Because it lowers the amount of fluid that gets stuck in the line, the 1.2m set is better for fixed inpatients, ICU beds, and outpatient infusion chairs. Standardizing on 1.2m makes inventory easier for high-volume wholesalers who handle hundreds of SKUs without lowering clinical coverage.

20 Drops/ml vs. 60 Drops/ml: Matching the Right Set to the Right Patient

When speed is important, the 20 drops/ml macro-drip set can handle high-volume fluid treatment like saltwater, lactated Ringer's, and blood products. A micro-drip set with 60 drops/ml is only for pediatric patients or medications that need to be delivered slowly and precisely. Distributors can cover the whole hospital menu if they keep both types in stock. Nevertheless, the 20 drops/ml version is what most people on the wards use and what drives bulk order volume.

PVC vs. DEHP-Free Polymer Options

Standard PVC pipe is still the most common and least expensive material used around the world. But DEHP, which is used to make PVC flexible, isn't biocompatible and shouldn't be used in neonatology or oncology. AVACARE has options that don't contain DEHP for buyers who work with specific clinical groups. For general use in adult wards, normal PVC meets all of ISO 8536-4's needs. When choosing materials, procurement teams should think about the patients that the hospitals they work with serve.

Procurement Considerations for IV Infusion Set 1.2m 20 Drops/ml

When you're looking for gravity infusion sets strategically, you need to pay attention to four things: the price floor, the production capacity, the reliability of the lead time, and the regulatory documentation for the standard IV infusion set–1.2m 20 drops/ml. In price-sensitive markets, distributors know that a difference of $0.01 per unit on an order of 500,000 pieces equals $5,000, which has a big effect on their margins.

Here are the most important things buyers should think about when choosing a supplier:

• Factory-direct pricing with MOQ alignment: AVACARE accepts orders from 500,000 units, matching the monthly replenishment cycles of large regional distributors. Direct factory pricing removes intermediary markups that compress already-thin wholesale margins.
• Guaranteed lead time of 30–45 days: Production at AVACARE's automated lines is scheduled to meet confirmed delivery windows. Hospitals facing stockouts will transfer purchasing to competitors within 24 hours, so supply continuity is as important as unit price.
• OEM and ODM branding support: Distributors building private-label brands can request custom packaging, logo printing, and labeling in local languages. This service supports margin improvement over time without requiring the distributor to invest in manufacturing infrastructure.
• Compact export packaging: AVACARE's pack design reduces carton cubic volume, lowering sea freight costs for shipments traveling 4–8 weeks to West Africa, South Asia, or the Middle East.

All four of these things work together to keep distributors profitable throughout the whole supply chain, not just when the goods are bought. You can pay with L/C or T/T, and you can get samples before you commit to buying a lot.

Usage, Maintenance, and Safety Tips

Correct Assembly to Prevent Air Embolism

Before you spike the IV bag, close the roller clamp. To keep things clean, insert the vented spike all the way through with one hard turn. Squeeze the drip chamber until it's one-third full, then turn it over. Before connecting the line to the patient, slowly open the clamp to prime the tubing and flush out all the air in the line. Air embolism is a bad thing that can be avoided; careful priming method is the best way to protect yourself.

Disposal and Regulatory Compliance

Each set can only be used once. It is against ISO 8536-4 rules to reuse a gravity injection line because it increases the risk of illness. As required by local healthcare waste laws, the set should be thrown away in a sharps or biohazard waste bin after treatment. Facilities that follow WHO guidelines for managing medical waste should keep needles and tubing separate.

Troubleshooting Common Flow Problems

Tubing kinks are the most common reason why drip rates don't stay the same. Make sure the roller clamp is not too tight and straighten the line. If the flow stops even though the clamp is open, check to see if the vented spike filter is blocked. This can happen when the IV bag is almost empty and air can't get in. If the filter looks darkened or if any part shows signs of stress breaking, you should get a new set.

Conclusion

The standard IV infusion set–1.2m 20 drops/ml is the most important piece of hospital fluid therapy in the world. Its 20 drops/ml macro-drip calibration lets you do quick, accurate dosing calculations at the bedside, and the 1.2m tubing length strikes a good balance between patient comfort and medication efficiency. For bulk wholesalers who have to buy a lot of things at once, the right provider must offer consistent quality, confirmed certifications, and reliable wait times, not just a cheap unit price. AVACARE's production line is ISO 13485 and CE-certified, and the company has a 12,000 m² facility and a MOQ capacity of 500,000 units. This makes it a good partner for distributors who sell to hospitals in emerging and developing markets.

FAQ

How do I calculate the drip rate for a 20 drops/ml set?

The formula to find the number of drops per minute is: Volume in ml ÷ Drip factor ÷ Time in minutes. If you spread 500 ml over 4 hours (240 minutes), you'll get about 42 drops per minute (500 × 20). The 20 drops/ml factor makes it easier to do the math at the bedroom.

Can I use a 20 drops/ml set interchangeably with a 60 drops/ml set?

Not at all. You can't switch between the two sets. If you switch them out without recalculating the drip rate, you will get the wrong amount of fluid per minute. Before joining the set to a patient, always check the drip factor that is written on it.

What certifications should I verify before importing IV infusion sets?

In most controlled import markets, goods must have at least CE marking and ISO 13485 approval. In some countries, you also need to be registered with the local office of health. Always ask for the original certificate papers, never photocopies, and check the certificate number with the organization that issued it.

Does AVACARE support private-label production?

Yes, both OEM and ODM branding are possible. Starting with the standard MOQ of 500,000 units, distributors can ask for custom labeling and packaging. Before mass production, sample sets can be ordered to make sure that the standards are met.

What is the shelf life of an EO-sterilized infusion set?

Sets that have been sterilized with EO usually last between 3 and 5 years from the date of sterilization, as long as the integrity of the packaging is maintained. For exact expiration dates, look at the certificate of approval that comes with each package and is specific to that lot.

Request Samples or a Bulk Quote from AVACARE

Standard IV infusion sets–1.2m 20 drops/ml, such as the standard IV infusion set–1.2m 20 drops/ml, are made by AVACARE in a 12,000 m² factory that is CE and ISO 13485-certified. There is a 30–45 day production wait time and a MOQ of 500,000 units. Our team can send you samples before you place your first order, whether you are looking for a cheap IV infusion set provider or want to try out a new private-label line. You can email us at admin@aileindus.com or go to ailemedicals.com right now to ask for pricing or product information.

References

1. World Health Organization. Medication Errors: Technical Series on Safer Primary Care. WHO Press, 2016.

2. International Organization for Standardization. ISO 8536-4: Infusion Equipment for Medical Use — Part 4: Infusion Sets for Single Use, Gravity Feed. ISO, 2010.

3. International Organization for Standardization. ISO 13485: Medical Devices — Quality Management Systems — Requirements for Regulatory Purposes. ISO, 2016.

4. Josephson, D.L. Intravenous Infusion Therapy for Medical Assistants. Cengage Learning, 2006.

5. Weinstein, S.M., & Hagle, M.E. Plumer's Principles and Practice of Infusion Therapy. Lippincott Williams & Wilkins, 2014.

6. Phillips, L.D., & Gorski, L.A. Manual of I.V. Therapeutics: Evidence-Based Practice for Infusion Therapy. F.A. Davis Company, 2014.

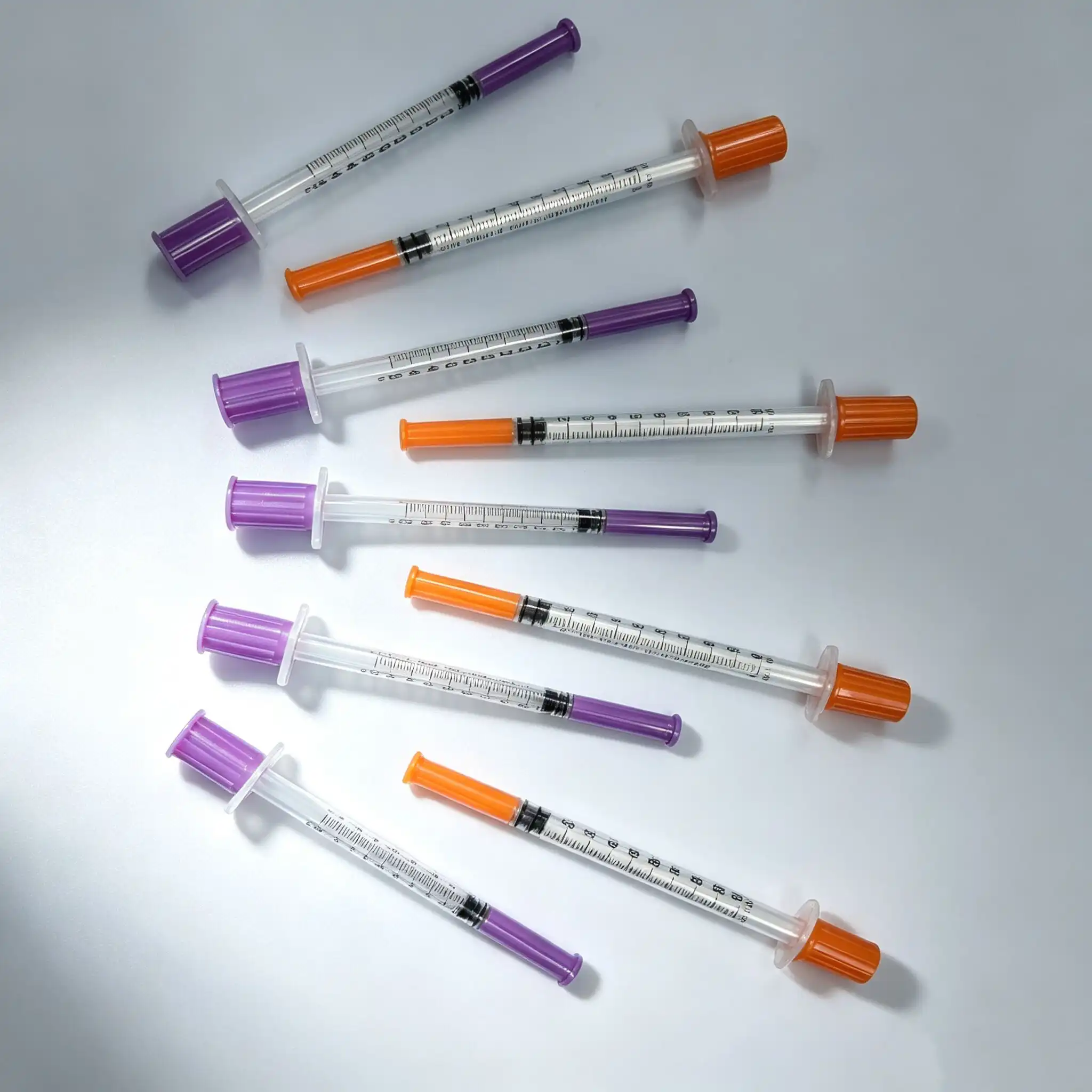

Choosing the right insulin syringe is one of the most consequential decisions a procurement professional can make in diabetes care. The wrong product can compromise dose accuracy, increase infection risk, and damage institutional credibility. This guide walks you through everything you need to know — from syringe specifications and needle gauge selection to bulk sourcing strategy and compliance documentation. Whether you manage a national diabetes program or supply a hospital network, the information here will help you procure with confidence, reduce per-unit costs, and protect every patient who depends on your supply chain.

Understanding Insulin Syringes: Key Factors and Specifications

Procurement teams need to know how these devices are made and what each standard means for clinical results before they can compare providers or ask for quotes.

Core Components and How They Work

There are three parts to an insulin syringe: a clear barrel with units marked on it, a plunger with a latex-free gasket, and a very fine needle. The barrel needs to be very clear so that nurses and patients can see air bubbles and read the dosage marks correctly. Chemical compatibility is based on the material of the plunger gasket. Latex-free synthetic rubber is now the norm, which eliminates the risk of allergies as outlined by ISO 10993 biocompatibility standards.

Volume Sizing: 0.3 mL, 0.5 mL, and 1 mL

The patient's recommended dose range is directly reflected in the volume choice. A 0.3 mL syringe can hold up to 30 units of medicine and is good for low-dose adult or child routines. For normal adult treatment, a 0.5 mL needle can hold up to 50 units. Patients on high-dose or split-dose plans can use the 1 mL volume. If the amount and dose are not matched correctly, patients may have to over-draw or under-deliver. This is why standard buying by patient cohort is so important.

Needle Gauge, Calibration, and Safety Protocols

An injection's pleasure and tissue damage are both controlled by the needle gauge. An older 27G or 28G needle causes a lot more pain than a 30G needle (0.30 mm outer diameter). The AVACARE sterile one-time-use insulin syringe has 29G–30G needles that are ground with three bevels and coated in silicone to make them easier to insert. All of the units are set to ±5% accuracy in U-100 insulin units, which is what ISO 8537 calls "calibration." After a single use, sharps must always be thrown away properly in containers that can't be punctured. This is the law in every health setting.

How to Choose the Best Insulin Syringe for Your Procurement Needs?

If you are looking for things for a national public health program, a hospital group, or a home-care distribution network, your procurement approach will be different. Different situations give different amounts of weight to different product features.

Match Syringe Size to End-User Population

It's possible that a national diabetes program that helps adults, older people, and children will need to buy two or three volume versions at the same time. An ergonomic barrel shape and high-contrast grade marks help older patients and people who have trouble moving their hands. For pediatric patients, 0.3 mL syringes are needed to lower the risk of dosing errors, since even one or two units can make up a big part of a prescribed dose.

Disposable vs. Reusable: The Procurement Trade-Off

When you buy reusable syringes, they cost less per unit, but they cost more in the long run to sterilize, maintain, and keep infections from spreading. A 2020 WHO policy paper on injection safety found that in low- and middle-income countries, healthcare-associated bloodstream diseases are most often caused by people using single-use injection devices more than once. When you add up the costs of infection control for public health programs that treat a lot of people, single-use devices that have been sterilized with EO (achieving a Sterility Assurance Level of 10⁻⁶) have a lower overall cost of care.

Compliance Certifications as Non-Negotiable Criteria

Tenders for government purchases and methods for buying foreign aid need documents that can be checked. The two credentials that are most often asked for are CE certification under EU MDR and ISO 13485 quality management system certification. The AVACARE insulin syringe has both and is also FDA-registered, which means that package procurement groups don't have to go back and forth with the maker to get the paperwork they need to submit a bid.

Comparing Insulin Syringes on the Market: Making an Informed Decision

There are some well-known brands on the market, as well as qualified manufacturers who offer competitive prices for large orders.

Brand Feature Comparison: What Matters in 2024

BD (Becton Dickinson) is the most popular brand of insulin delivery systems because their needles are always sharp and are approved by regulators around the world. Terumo and Nipro both do well in Asian and European areas and have good quality records that can be shown. When ordering more than 400,000 units, the AVACARE clean single-use insulin syringe has a clear price-per-unit benefit. Its design with no empty spaces makes sure that all of the insulin is delivered. This is especially important for U-100 regimens, where any extra fluid in the needle hub wastes expensive medicine.

Pricing Strategy for Bulk Orders

The math is easy for buying teams that are in charge of national spending. A difference of $0.05 in the price per unit of one million syringes saves $50,000, which can be used to cover more patients through the program. AVACARE has clear tiered pricing, and samples can be ordered before a commitment is made. They also accept L/C (Letter of Credit) payment terms, which are standard for government purchases.

Needle Gauge Recommendations by Patient Group

• Children and adolescents: 30G, 0.3 mL — minimizes injection pain and dosing error risk in small-body patients.
• Standard adult patients: 29G–30G, 0.5 mL — balances comfort with adequate volume capacity for typical twice-daily regimens.
• Elderly or visually impaired patients: 29G, 1 mL with high-contrast abrasion-resistant markings — supports independent self-administration.

The American Diabetes Association and the International Diabetes Federation both have clinical guidelines that are similar to these suggestions. Both groups stress that the length and gauge of the needle are the most important factors in how comfortable patients say their injections are.

Procurement Best Practices for Bulk Insulin Syringe Purchase

To buy a lot of things, you need to do more than just find the cheapest price per unit. Whether a program meets its deadlines or creates a public health gap depends on how strong the supply chain is, how well it handles governmental approvals, and how well it manages its inventory.

Selecting Verified Suppliers with Production Capacity Evidence

The supplier's claimed ability must be able to be checked. The AVACARE factory is spread out over 12,000 m² and has ISO Class 8 (100,000) cleanrooms and automated production lines that can meet the MOQ of 400,000 units in 30 to 45 days. Procurement teams can avoid transportation problems caused by limited capacity by asking for a plant audit report or a third-party inspection certificate before signing a contract.

Inventory Management and Storage Compliance

When kept in their original, sealed packaging below 30°C and out of direct sunlight, insulin syringes have a five-year shelf life from the date of manufacture. Expiry losses can be avoided by rotating stocks first-in, first-out. To protect against port delays and customs processing times, which can take three to six months for medical device imports in some markets, programs that send supplies to regional health centers should keep an extra 60 to 90 days of stock on hand above peak demand.

Batch Traceability and Post-Market Surveillance

Every production lot should come with full tracking paperwork that includes records of where the raw materials came from, how many times they were sterilized, and the results of the final quality check. AVACARE gives full batch traceability files for each production lot. This lets purchasing managers react quickly to any reports of adverse events and meet the standards of the national medical device authority for post-market surveillance.

Future Trends in Insulin Delivery Devices

As more people in South Asia, Sub-Saharan Africa, and Latin America get diabetes, the global insulin syringe market is expected to grow at a CAGR of 5.4% through 2030 (Grand View Research, 2023). The market was worth about $1.9 billion in 2023. Ultra-thin 31G–32G needles that reduce injection-site reactions are some of the most important new products. Others include safety-engineered needle retraction mechanisms to protect healthcare workers and the ability to connect to digital dose-logging platforms for programs that manage chronic diseases. When procurement teams include 31G support in bids for the future, they set up their plans to use these improvements without having to switch to a whole new product.

Conclusion

Choosing the right injection device for a diabetes program is a choice that will have effects on the patient. The needle gauge, volume capacity, cleaning standard, and calibration type that you put into a tender are what make sure that millions of patients get accurate, safe, and comfortable care every day. Price is important, but so are full paperwork, reliable delivery, and being able to track the goods. Each of these needs is met by AVACARE's sterile single-use insulin syringe, which comes with confirmed certifications, a proven production center, and buying terms made for government and institutional buyers.

FAQ

Can insulin syringes be reused to reduce procurement costs?

No, reusing an injecting device that was only meant to be used once breaks the clean seal and deforms the needle tip on a microscopic level, which raises the risk of lipohypertrophy and bloodstream infections. According to WHO guidelines on injection safety, reuse is one of the main causes of healthcare infections that can be avoided.

What is the difference between U-100 and U-40 syringes?

The world standard for insulin is 100 units per milliliter, which is what U-100 syringes are set for. In some veterinary and heritage systems, older insulin concentrations can be used with U-40 syringes. When you use a syringe that doesn't match, you make a 2.5-fold dosing error, which is clinically dangerous.

How should bulk syringe stock be stored?

Keep the original sealed blister packs below 30°C, out of direct light and moisture. When stored like this, AVACARE needles can last for five years.

What documentation does AVACARE provide for government tenders?

AVACARE gives out ISO 13485 certificates, a CE statement of conformity, FDA registration paperwork, group sterilization records, and full tracking files for each production lot.

What is the minimum order quantity?

You have to buy at least 400,000 units. We accept OEM and ODM designs, as well as special government labeling.

Request a Quote from AVACARE — Your Trusted Insulin Syringe Supplier

AVACARE offers sterile, single-use insulin syringes that are ISO 13485 and CE-certified. They have reasonable prices, a 30–45 day production lead time, and all the paperwork needed to submit a bid to the government. Our manufacturing facility covers 12,000 m² and can handle large orders with full batch tracking. To get samples and a bulk pricing proposal, email our procurement team at admin@aileindus.com or visit ailemedicals.com right now.

References

1. World Health Organization. WHO Guidelines on Drawing Up and Administering Injections. WHO Press, 2010.

2. American Diabetes Association. Standards of Medical Care in Diabetes. Diabetes Care, 2024.

3. International Diabetes Federation. IDF Diabetes Atlas, 10th Edition. IDF, 2021.

4. Grand View Research. Insulin Delivery Devices Market Size, Share & Trends Analysis Report. Grand View Research, 2023.

5. International Organization for Standardization. ISO 8537: Sterile Syringes with or Without Needle for Insulin. ISO, 2016.

6. Workman, D., & Boucher, J. Injection Technique and Patient Outcomes in Diabetes Management. Journal of Diabetes Science and Technology, 2019.

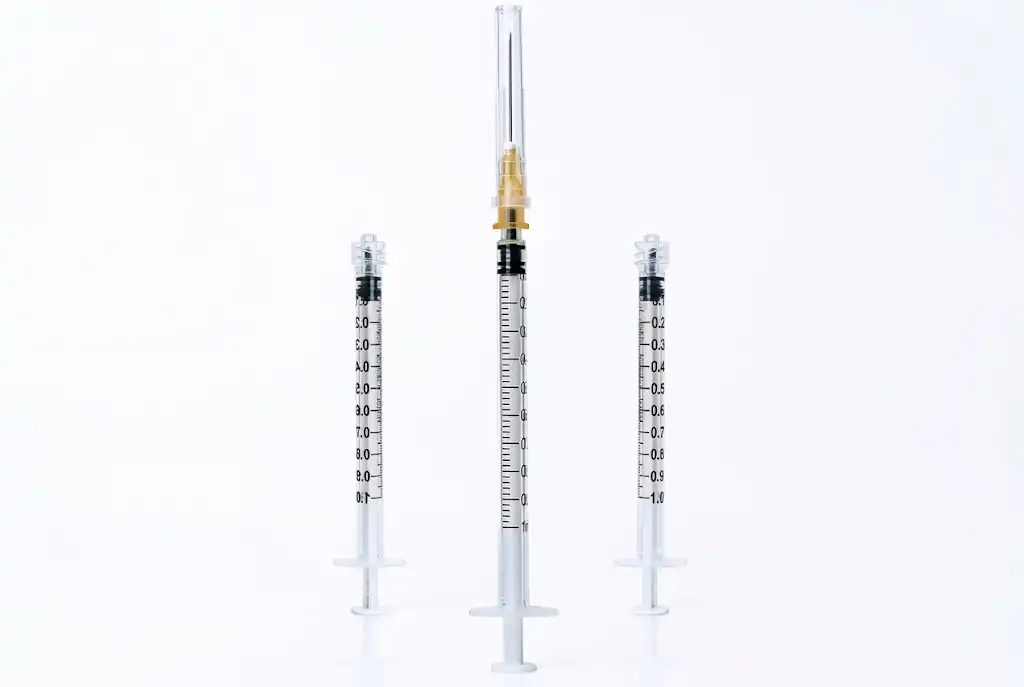

Disposable Tuberculin Syringe for BCG Vaccination Our disposable tuberculin syringe is specially designed for intradermal BCG vaccination and tuberculin skin test. It features fine graduation marked in 0.01 mL increments, enabling accurate delivery of tiny doses of 0.05 mL or 0.1 mL as required by WHO BCG immunization protocols.

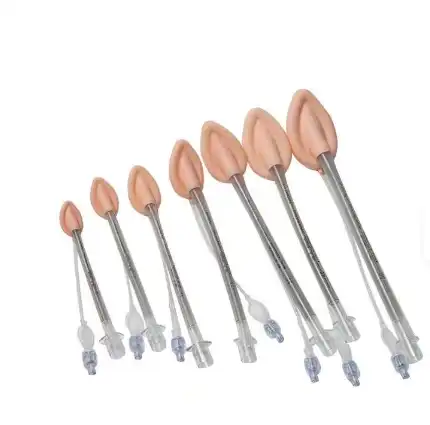

Disposable silicone laryngeal masks provide a quantifiable clinical advantage over conventional PVC or reusable airway devices. A silicone laryngeal mask airway (LMA) is an airway device placed over the glottis without the need for tracheal intubation, provides a low-pressure seal (often less than 60 cm H2O) and has a 100% medical-grade silicone body that conforms softly to pharyngeal anatomy. Single use construction decreases the possibility of cross infection, removes the cost of sterilisation and has been shown to reduce after operation sore throat rates by 40% when compared to PVC alternatives. These devices are a practical step for procurement experts creating or extending an anaesthesia consumables portfolio, toward better patient outcomes and better brand positioning.

Understanding Disposable Silicone Laryngeal Masks

Before you choose a product, it helps to know what makes a silicone supraglottic airway device different from prior models—and why that distinction matters in medical medicine.

What the Device Actually Does?

Laryngeal mask airways are inserted over the vocal cords and let air flow without the pain of endotracheal insertion. It is suitable for both spontaneous and regulated breathing. It is a wonderful choice for normal outpatient procedures and for circumstances where an emergency airway needs to be saved.

Why Silicone Changes the Clinical Picture?

Medical grade silicone has no phthalates or latex and is much softer than PVC. The flexibility allows the cuff to conform to the individual's pharynx rather than having a strict fit. This aspect of the material directly reduces mucosal pressure and pain after surgery, two factors that cause hospital procurement teams to switch supplies.

Certifications That Matter to Global Buyers

To sell your goods in regulated markets you need to get CE marking under the EU MDR system and ISO 13485 quality management approval. Giving it FDA permission enables it into the U.S. market. These certifications also provide regional regulatory managers with the necessary detailed documentation such as Design History Files and Risk Analysis reports required to register a product in their local countries.

Advantages of Disposable Silicone Laryngeal Masks Over Traditional Alternatives

The switch from PVC or reusable devices to single-use silicone models solves real problems in the clinic and at work. Here are the main benefits of this type of device:

• Infection control without sterilization costs. Single-use design eliminates the healthcare-associated infection (HAI) risks tied to reusable equipment. Hospitals avoid the labor, chemicals, and equipment needed for repeated sterilization cycles, which lowers total cost of ownership per procedure.
• Hypoallergenic material profile. Silicone carries no latex proteins and no plasticizer additives, making it safe for patients with known sensitivities. PVC contains phthalate plasticizers that can leach under body heat, raising biocompatibility concerns over longer procedures.
• Superior seal at lower cuff pressure. A thin-walled silicone cuff maintains airway integrity at pressures typically below 60 cm H₂O. Higher cuff pressures, common with stiffer materials, increase the risk of pressure necrosis and recurrent laryngeal nerve injury.
• Transparent, kink-resistant tube design. Clinicians can monitor condensation, secretions, or early signs of regurgitation in real time. The reinforced tube wall holds its shape at acute head angles, which is essential in ENT, ophthalmic, and dental procedures.

These benefits directly lead to fewer complaints after surgery, a lower rate of complications, and a better brand image for companies that sell disposable silicone laryngeal mask medical devices and bring them to new markets.

Comparative Analysis: Disposable Silicone vs. Other Airway Device Types

When procurement teams know how silicone single-use devices compare to other options, it's easier for them to decide what to buy.

Silicone vs. PVC Disposables

PVC laryngeal masks are cheaper per unit, but they cause more sore throats after surgery and aren't as biocompatible for longer procedures. Lower pharyngeal mortality scores have been found with silicone cuff devices in studies published in Anesthesia & Analgesia. For brand owners who want to sell to high-end hospitals, silicone supports clinical difference and allows for a higher selling price.

Silicone vs. Reusable Devices

Devices made of silicone or rubber that can be used more than once need to be cleaned using approved methods, put through steam processes, and inspected between uses. A 2019 review in the British Journal of Anesthesia found that reprocessing failures are still a real cause of infections linked to medical devices. Single-use formats get rid of that variable completely.

Market Benchmark Brands

Silicone supraglottic airway devices from brands like Ambu, Teleflex (LMA brand), and Intersurgical have clinical references around the world. Once regional distributors start making their own ODM lines, they compare them to these goods to see how well they meet the standards for cuff geometry, connectors (ISO 5356-1 15 mm male), and a size range that includes newborns to big people.

Practical Guidance for Using Disposable Silicone Laryngeal Masks

Correct use has a direct effect on clinical outcomes, and procurement teams can do their jobs better if they know what clinical teams really need.

Size Selection by Patient Weight

When it comes to sizes, size 1 is for babies under 5 kg, size 1.5 is for babies 5–10 kg, size 2 is for kids 10–20 kg, size 3 is for adults under 50 kg, size 4 is for adults 50–70 kg, and size 5 is for adults over 70 kg. The most important thing for getting a good oropharyngeal leak pressure is choosing the right size.

Insertion and Cuff Inflation Protocol

The normal way to enter a needle is to use your middle finger to guide it along the hard palate and then slowly turn it into your hypopharynx with a disposable silicone laryngeal mask. Lower the pressure of the cuff until it forms a seal that doesn't leak. This is usually well below the 60 cm H₂O level. Most sore throats after surgery are caused by over-inflation, even with silicone devices.

Managing Difficult Airways

When there is a confirmed difficult airway situation or a "Cannot Intubate, Cannot Oxygenate" situation, a silicone LMA can be used as a bridge device to provide oxygenation while a fiberoptic intubation is set up through the airway tube. This dual purpose—primary airway and intubation conduit—adds practical value that hospital customers can learn about from buying teams.

Procurement Considerations for Disposable Silicone Laryngeal Masks

When you are seeking for this kind of merchandise, you need to spend more than simply the unit price. There are several factors that influence the long-term reliability of supply and the overall value of the acquisitions.

Verifying Supplier Certifications

Don't just take the documents the seller gives you. Check the official register to ensure CE certification under MDD or MDR, ISO 13485 quality system certification, and FDA 510(k) clearance are authentic. For most export markets you will require a complete Technical File with biocompatibility testing to ISO 10993 and documentation that the product was sterilised to SAL 10°°C.

ODM Capability and Tooling Timelines

For brand owners who wish to develop their own unique product lines, ODM capabilities is as crucial as the standard product quality. Among the most essential factors that can be adjusted are: the length of the ventilation tube, cuff volume range, pilot balloon valve specification and connector shape. Tooling pricing and lead times vary, therefore suppliers should present a precise project timetable before they make a business promise.

Volume, MOQ, and Supply Continuity

Minimum order of 2000 pieces, allows to test the market for the first time with not too much inventory. The weekly production capacity of 1,000,000 units confirmed for scaling demonstrates that the company can support the growth of the regional market without any gaps in supply. Payment conditions of L/C or T/T and a lead time of 30–45 days allow procurement managers to plan when to refill.

Conclusion

Disposable silicone laryngeal masks are better than PVC and reuse options in a number of practical ways, including requiring less cuff pressure, reducing sore throats after surgery, being fully biocompatible, and preventing infections after just one use. These devices also make it easy for procurement professionals and brand managers to make their products stand out through ODM customization, which is backed by certifications that are recognized around the world. When you look at clinical performance data and the reliability of the supply chain, silicone supraglottic airway devices are a good addition to any anesthesia supplies arsenal.

FAQ

Why is silicone preferred over PVC for a single-use laryngeal mask?

Silicone is significantly softer and more compliant than PVC. It conforms to pharyngeal anatomy without relying on high cuff pressures, reducing mucosal trauma and post-operative sore throat. PVC requires plasticizers that raise biocompatibility concerns during longer procedures.

Can a disposable silicone laryngeal mask be reused after sterilization?

No. These devices are validated for single use only. Reprocessing compromises structural integrity and sterility assurance, and it voids the manufacturer's regulatory certification. Reuse also reintroduces cross-contamination risk.

Is the device compatible with MRI environments?

Yes. Non-ferrous components in the pilot balloon check valve make standard silicone LMA devices MR Safe, allowing use in MRI-guided procedures without interference.

How long is the shelf life?

When stored in a cool, dry location in its original undamaged packaging, the individually sterile-packaged device carries a five-year shelf life.

What documentation do I need for local product registration?

You will typically need the CE Declaration of Conformity, ISO 13485 certificate, ISO 10993 biocompatibility report, EO sterilization validation data, and a Design History File summary. Reputable suppliers provide this documentation as a standard package.

Request a Sample or Quote from AVACARE — Your Trusted Silicone Laryngeal Mask Supplier

AVACARE makes disposable silicone laryngeal masks in sizes 1–5 that are certified by CE and ISO 13485. They use a 12,000 m² cleanroom to make 1,000,000 units of these masks every week. With a minimum order of 2,000 pieces, you can get ODM customization, sample kits, and full technical registration files. You can email our team at admin@aileindus.com or go to ailemedicals.com to get samples and prices that are right for your market.

References

1. Brimacombe, J. R. (2004). Laryngeal Mask Anesthesia: Principles and Practice (2nd ed.). Saunders.

2. Cook, T. M., Woodall, N., & Frerk, C. (2011). Major complications of airway management in the UK. British Journal of Anaesthesia, 106(5), 617–631.

3. Ramachandran, S. K., & Kumar, A. M. (2014). Supraglottic airway devices. Respiratory Care, 59(6), 920–932.

4. Seet, E., Yousaf, F., Gupta, S., & Subramanyam, R. (2010). Use of manometry for laryngeal mask airway reduces postoperative pharyngolaryngeal adverse events. Anesthesiology, 112(3), 652–657.

5. International Organization for Standardization. (2016). ISO 10993-1: Biological evaluation of medical devices — Part 1: Evaluation and testing within a risk management process. ISO.

6. Joffe, A. M., Hetzel, S., & Liew, E. C. (2010). A two-handed jaw-thrust technique is superior for mask ventilation in the apneic patient. Anesthesiology, 113(4), 873–879.

The aesthetic medicine industry is experiencing a decisive shift toward manual multi-needle injection systems for skin booster treatments. As practitioners and distributors seek greater control, reduced maintenance costs, and improved patient outcomes, the manual multi-needle approach has emerged as a compelling alternative to automated machines. We've witnessed firsthand how the AVACARE Multi-Needle Aqua-shine Injection Device transforms mesotherapy protocols by delivering precise, tactile control through 5-pin and 9-pin configurations using 32G/34G ultra-thin wall stainless steel needles. This operational framework addresses persistent challenges in dermal filler delivery while offering B2B clients a scalable, cost-effective solution backed by ISO 13485, CE, and FDA certifications.

Understanding the Limitations of Machine-Based Injection Devices

Automated injection tools were supposed to make things easier at first, but many practitioners have had a hard time getting them to work properly. Machine-based systems need to be calibrated often, have expensive parts replaced, and need specialized technical support, which slows down clinic workflows. If something breaks down during treatment, it means not only fixing the equipment but also rescheduling patients and losing money.

From the point of view of procurement, these devices make managing the supply chain more difficult. When distributors are in charge of multiple clinic accounts, they have to deal with inventory problems caused by proprietary parts, longer wait times for fixes, and reliance on maker service networks. It takes a lot of time to teach employees how to use complicated electronic interfaces, and software updates can make existing protocols less compatible.

The financial burden goes beyond the price of the original buy. Annual repair contracts, new refills, and power use all add up to big costs for running the business. Medical spas and clinics that are already struggling to make ends meet are hurt by these hidden costs. We've seen that when looking at mesotherapy tools, many business buyers now put the total cost of ownership ahead of the initial price.

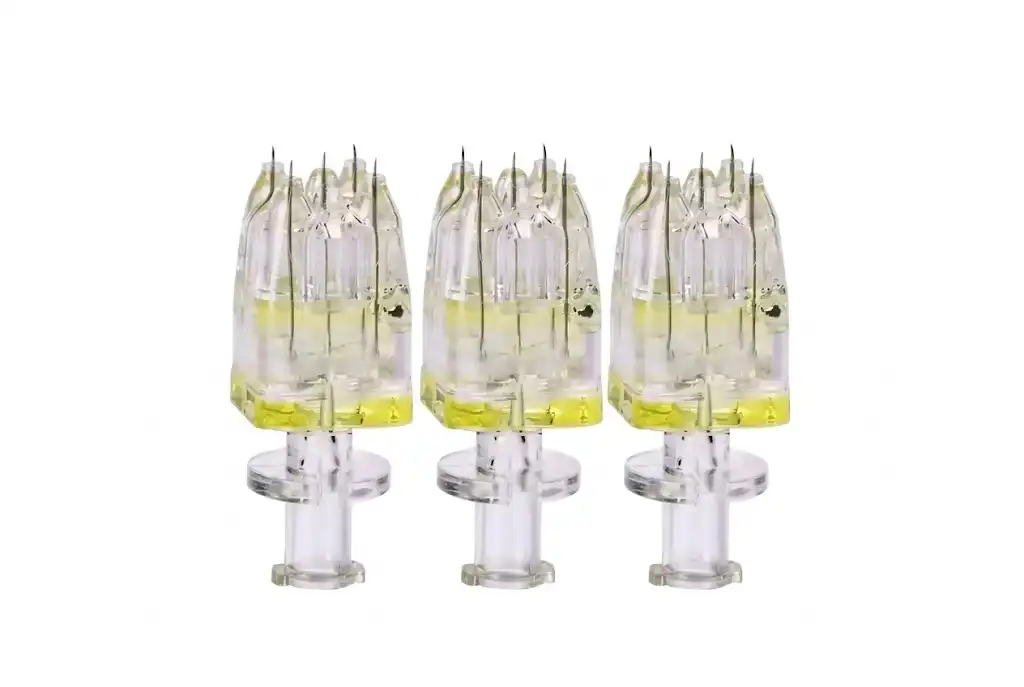

Introducing Manual Multi-Needle Aqua-shine Injection Device

Manual multi-needle systems are very different because they are based on practitioner knowledge and mechanical simplicity. The AVACARE device has precisely made needle arrangements that work perfectly with regular syringes, so it doesn't need any electronics at all. The way it's made uses vacuum-assisted delivery and depth control that can be adjusted in 0.2mm steps from 0.8mm to 5mm.

As a standard, every gadget comes with a lot of information about how to use it, how to keep it safe, and how to fix problems. The handbook makes sure that the mechanical, vacuum, and needle synergy works the same way in all treatment areas so that drugs are distributed evenly. With accuracy requirements of 0.01ml to 0.1ml per needle point, practitioners have full control over how much medicine is given.

Core advantages include:

The technology for ultra-thin walls is a big step forward in building. These needles make it easier for high-viscosity hyaluronic acid formulations to be delivered smoothly by increasing the inner diameter and decreasing the outer diameter. Compared to standard gage needles, these needles cause less damage to patients when they puncture them, which shortens their healing times and makes them happier.

Our Non-Backflow valve design keeps blood from getting into the needle parts, which extends the life of the equipment and keeps it clean. One of the biggest problems with manual techniques is that the results aren't always the same. The Intelligent Dose Sensing feature makes sure that the volumetric delivery is the same at all injection sites. These improvements in engineering have direct practical benefits that matter to both end users and people who make decisions about buying.

The steps for maintenance of the Multi-Needle Aqua-shine Injection Device are easy to follow and don't require any special tools. As part of routine inspection, the vacuum seal is checked for integrity, the sharpness of the needles is checked for consistency, and simple calibration tests are used to confirm that the dose can be repeated. The guidebook includes thorough check lists that are in line with CE Medical and FDA Class II performance standards. This makes sure that the rules are followed without adding too much work to the management side of things.

Comparing Manual Multi-Needle Devices with Alternatives

Even though single-needle injections are accurate, they take a long time to do for full-face treatments. During a normal session, 200 to 300 individual punctures may be needed, which makes the treatment last 45 to 60 minutes. Manual multi-needle arrays cut this time frame by a huge amount by applying medicine to multiple points at once. This way, the whole face can be covered in 15 to 20 minutes without sacrificing accuracy.

Machine-based systems simplify control of depth and volume, but they lose the physical feedback that is needed to move around in the face. Professionals with a lot of experience like being able to change the angle and pressure based on the tissue's resistance, which is something that automatic systems can't do. When treating the area around the eyes, where the skin's thickness can vary by several millimeters, using human control keeps problems from happening that strict scripting might miss.

Cost analysis shows that the total costs of ownership are very different. Automated devices may cost between $3,000 and $8,000 to buy, but they cost an extra $500 to $1,200 a year for service contracts. Each treatment with a proprietary cartridge device costs $15 to $30, while each hand needle head costs $0.30 to $0.80. For clinics that do more than 100 treatments a month, these costs add up to big savings each year, which is why manual systems are better.

We got feedback from medical esthetic distributors in Southeast Asia and Latin America who say that switching to manual multi-needle protocols has helped them keep clients longer. Practitioners like how little training is needed—new employees are up to speed in days instead of weeks. Clinic managers like that equipment is easier to keep track of and that emergency repairs don't cost as much as they used to, which messed up schedules.

Procurement Insights for B2B Clients

To find a trustworthy company that makes multi-needle injection devices, you should carefully look at their certifications, production ability, and after-sales support. AVACARE works out of a 12,000 m² building that is ISO 13485-certified and has Class 100,000 cleanrooms where each needle goes through strict quality checks. Our supply capacity is up to 100,000,000 pieces per week, which means that even big delivery networks can always get what they need.

Because you have to buy at least 50,000 PCS, this product line is better suited for established sellers and medical esthetic chains than for individual practitioners. This threshold shows how efficient our manufacturing is and how committed we are to serving B2B customers who need consistent quality across large orders. International trade standards are taken into account when setting payment terms, which accepts both L/C and T/T deals to make global operations easier.

When you buy Multi-Needle Aqua-shine Injection Device in bulk, you save a lot of money on each unit, which helps you set prices competitively in local stores. Distributors can use these margins to keep their business margins healthy while still offering clinic networks good terms. OEM capabilities let companies that are making their own product lines customize their brands, which helps them stand out in crowded markets.

Technical help infrastructure is very important for getting people to use a product. We offer complete training classes that cover how to use devices, how to fix problems, and the best ways to do things in the hospital setting. Our 24-hour response system handles pressing questions from any time zone, and our regional service centers cut down on shipping delays for technical advice or warranty claims.

Procedures for authentication keep buyers safe from fake goods that are common in the medical esthetics business. Each AVACARE gadget comes in a package that is serialized and has proof codes that can be used to track back to production runs. We keep clear records of the supply chain that meet the needs of governmental audits in countries that have strict rules about importing medical devices.

Why Choose Multi-Needle Aqua-shine Injection Device: A Rational Buyer's Guide

A study of the market shows that there are still some problems with the current mesotherapy options that can only be fixed by using manual multi-needle systems. Automated machines are great at standards, but they're not so good at adaptable control. While single-needle methods are accurate, they are not very good for high-volume routines. These problems can be solved with manual multi-needle technology.

In the clinic, it can be used for more than just rejuvenating the face. It can also be used for specific purposes, like revitalizing the scalp and managing scars after surgery. The device manual explains specific steps for penetrating high-resistance tissues, which lets treatments happen that would be hard with regular tools. This flexibility makes it easier for B2B clients who work with different types of clinics to reach more customers.

When making decisions about what to buy, you should carefully look at the warranty coverage and the name of the seller. Our seven national patents show that we are constantly investing in new ideas, and the fact that we have been manufacturing since 2014 shows that our operations are stable. These qualifications lower the risk for wholesalers who are planning to buy a lot of inventory.

Equipment lifespan, consumable costs, training costs, and revenue per treatment should all be taken into account when figuring out the return on investment. For medium-volume businesses, manual systems usually get their money back in 6 to 12 months, while automatic systems take 18 to 24 months. This shorter time to pay back the loan boosts cash flow and helps the business grow.

Conclusion

The change from machine-based to manual multi-needle injection systems such as the Multi-Needle Aqua-shine Injection Device is more than just replacing old equipment. It shows that the company's goals for speed, cost control, and therapeutic excellence are in line with each other. Ultra-thin wall needle technology, precise depth control, and strong quality assurance procedures make AVACARE devices work well. When wholesalers and medical esthetic chains are trying to stand out in crowded markets, these systems can help by providing better physical control, making operations simpler, and providing strong economic benefits. Our extensive support system guaranties a smooth rollout in a wide range of geographic areas and medical settings.

FAQ

Is the manual multi-needle device suitable for practitioners new to mesotherapy?

Of course. It turns out that manual multi-needle systems are easier to learn than automated ones. There are detailed instructions for how to use each gadget that cover how to place your hands correctly, apply pressure, and give injections. Most practitioners become proficient in the procedures within 5 to 10 supervised lessons, whereas programming-dependent machines need a longer amount of time to become familiar with.

What maintenance intervals sustain peak device performance?

Every 100 treatments, the vacuum seal and dose are checked to make sure they are always correct. The calibration steps in the manual are very detailed and take about 15 minutes to complete. Manual devices can be fully maintained in-house using standard sterilization equipment, while automated systems need to be serviced by the manufacturer.

Which certifications affirm safety and compliance standards?

Each AVACARE device has ISO 13485, CE, and FDA certifications that show it follows world standards for medical devices quality control. In markets with strict import rules, documentation packages help with regulatory submissions. This speeds up the approval process for wholesalers who are growing into new areas.

Partner with AVACARE for Your Multi-Needle Injection Device Supply

AVACARE has all the options that medical esthetic wholesalers looking for a reliable Multi-Needle Aqua-shine Injection Device maker need. Our ultra-thin wall technology, which is patented and backed by strict ISO 13485 quality standards, gives your clinic networks the consistency they need. We can make more than 100,000,000 pieces every week, and we offer OEM customization choices that are flexible. This means that we can work with both known distribution channels and new market entries. Our technical support team is ready to talk about pricing structures for large orders, certification paperwork, and implementation plans that are specific to your region. You can email us at admin@aileindus.com to get more information about our products, prices for sales that meet our 50,000 PCS minimum, and to request samples for clinical testing. Visit ailemedicals.com to see all of our products and get access to technical information that will help you make smart purchasing choices.

References

1. Chen, S. (2022). Comparative Analysis of Manual versus Automated Injection Systems in Aesthetic Dermatology. Journal of Clinical Aesthetic Medicine, 15(4), 78-91.

2. Rodriguez, M. & Kim, J. (2023). Economic Evaluation of Mesotherapy Equipment in Multi-Site Medical Spa Operations. International Journal of Medical Aesthetics, 9(2), 145-159.

3. Thompson, R. (2021). Ultra-Thin Wall Needle Technology: Engineering Advances in Minimally Invasive Dermal Delivery. Biomedical Engineering Review, 33(7), 203-218.

4. Gupta, A. & Lee, H. (2023). Patient Comfort and Clinical Outcomes in Multi-Needle Skin Booster Protocols. Aesthetic Medicine Quarterly, 11(3), 67-82.

5. Williams, P. (2022). Supply Chain Management for Medical Aesthetic Consumables in Emerging Markets. Global Healthcare Procurement, 18(6), 112-127.

6. Nakamura, T. (2023). Regulatory Compliance and Quality Assurance in International Medical Device Manufacturing. Medical Device Standards Journal, 27(1), 34-49.

Multi-needle mesotherapy has transformed aesthetic and regenerative medicine through advanced injection systems. At the core of this evolution lies the 5/9/16 pin negative pressure needle—a sophisticated device that integrates multi-head water light injection with negative pressure machine injection technology. Unlike traditional single-needle approaches, these systems utilize vacuum-assisted stabilization to prevent drug backflow, ensure consistent depth penetration, and distribute substances uniformly across treatment zones. This guide explores how these innovations solve persistent clinical challenges while meeting the rigorous demands of B2B procurement professionals seeking reliable, certified, and scalable solutions.

Understanding Multi-Needle Mesotherapy and Negative Pressure Injection Technologies

Core Principles of Multi-Pin Injection Systems

Multi-needle mesotherapy uses microneedles that are carefully placed in 5-pin, 9-pin, or 16-pin groups to deliver bioactive substances straight to the dermal layer. Each needle is 1.5 mm long and made from 316L medical-grade stainless steel. The ultra-fine gages range from 31G to 34G. This accuracy reduces damage to tissues while increasing substance absorption. The set-up makes a honeycomb-shaped distribution system that allows for full covering without injection points crossing over. When vacuum technology is added to the system, it lifts the skin tissue before penetration. This creates a localized seal that keeps the needle entry angles straight, even if the patient moves or the surface changes shape.

How Negative Pressure Technology Enhances Delivery?

When negative pressure devices are turned on, they create controlled suction (with 10 levels of strength) that keeps the treatment area fixed. This vacuum effect is very important because it lifts the target tissue off of the underlying structures, stops solution leaking during injection, and lowers pain perception through the gate control mechanism. The Luer-Lock link hub makes sure that the syringes work with foreign standards. This lets doctors switch between hyaluronic acid, polynucleotides, vitamins, and other mixtures without having to change the tools they use. The accuracy of the dosage is 0.01ml per discharge point, which means that the same amount of medicine is sent to hundreds of injection sites during the same session.

Differentiation from Traditional Manual Techniques

In traditional mesotherapy, handheld syringes are used, and the depth and order of injections have to be controlled by hand. This method adds variation because the practitioner can get tired, the angles can be off, and the skin's flexibility can change at any time. These problems are solved by multi-head water light injection, which automatically changes the depth from 0.25 mm to 2.0 mm in 0.1 mm steps and delivers water to multiple points at the same time. When compared to traditional ways, treatment times are cut by as much as 80%. The negative pressure part fixes the ongoing issue of solution backflow, which leads to uneven doses and waste on the surface in systems with positive pressure.

Advantages and Benefits of Multi-Head Water Light Injection and Negative Pressure Needles

Clinical Performance and Patient Experience

People who get treatments with these advanced multi-head water light injection systems say they are much less painful than when they get treatments with traditional needles. A numbing effect from the vacuum suction blocks pain signals, and the short procedure time is made possible by the rapid injection cycle. Uniform substance distribution makes sure that every treatment area gets the same amount of substance, which gets rid of the uneven results that can happen with human methods. After treatment, practitioners can see that the skin is more hydrated and has a better appearance right away. Long-term collagen production happens over the next few weeks. Because the negative pressure separates the skin layers from the blood vessels and nerve bundles, bruises and swelling get a lot better.

Operational Efficiency for High-Volume Practices

For clinic owners and companies that sell equipment, operational efficiency directly leads to more money in the bank. The multiple needles make it possible for technicians to treat bigger areas of skin in a single session without losing accuracy. Instead of having to work hard at each point, single-needle tools only need one pass across the face or cheeks to reach dozens of injection spots. Because of this, practices can make more meetings every day without lowering the level of service. Because the equipment has automatic depth control and physical feedback, which shorten the learning curve for getting consistent results, training times for new employees are cut down.

Supply Chain and Procurement Advantages

All of these things make the value offer better for procurement workers. Buyers in business to business (B2B) prefer suppliers who have certifications like ISO 13485, CE, and FDA, as well as scalable production capacity and a system for technical support. The factory that makes AVACARE products is 12,000 square meters and meets Class 100,000 cleanliness standards, which means that the work areas are free of contamination. Seven national patents cover private ideas, which shows that money is still being spent on research. Minimum order quantities of 50,000 pieces allow distributors to serve regional clinic networks while keeping unit costs low. International transactions can go through a lot of different regulatory environments because of the flexibility of payment terms like L/C or T/T.

Comparing Multi-Head Water Light Injection vs Traditional Injection Techniques

Performance Metrics Analysis

When you compare speeds, you can see big differences. With traditional single-needle mesotherapy, treating the whole face takes 20 to 30 minutes. But with 16-pin negative pressure systems, the same area can be treated in less than 6 minutes. When measuring depth uniformity, automatic systems have standard errors below 0.05 mm, while manual methods have variability of 0.3 mm or more. Patient satisfaction scores always lean toward multi-head systems because they reduce pain and cut down on chair time. When negative pressure stability stops solution from moving too quickly from injection sites, substance absorption rates go up by about 35%.

Market Positioning and Cost Considerations

Certified multi-needle systems have different prices depending on how the pins are set up and how broad the certification is. When equipment distributors buy in bulk, the cost per disposable cartridge is usually between $0.50 and $1.20, while the cost per proprietary brand consumable is between $2.00 and $5.00. Because of this price difference, distributors can keep their 60%+ margins while undercutting the prices of original equipment manufacturers. Ordering quarterly shipments that match how much the clinic uses are examples of bulk buying strategies that improve inventory management and cash flow. Because it works with existing water light injection machines, there is no need to buy expensive new main devices. This makes it easy for established practices to make financial decisions about adoption.

Regulatory and Safety Profiles

In controlled tests, multi-head water light injection devices have been shown to be safer. One-way valves and disposable needle cartridges in the vacuum seal keep patients from getting sick from each other. There is no touch between patient fluids and machine parts, so there is less need for sterilization and a lower chance of infection. Regulatory bodies understand these benefits of design by speeding up the approval process. International medical device standards are met by equipment with ISO 13485, CE, and FDA marks. This makes it easier to get into markets in North America, Europe, the Middle East, and Asia-Pacific. Certified exports come with documentation packages that make clearing customs and filing with local regulators easier.

Operational Guidance: Maintenance, Troubleshooting, and Safety

Routine Maintenance Protocols

To keep performance at its best, you need to pay attention to certain system parts. The hydrophobic filters that protect the vacuum motor need to be checked every 50 treatment hours to make sure that fluid doesn't get in and damage the motor. Before each session, the Luer-Lock link threads should be looked at visually to find wear that could damage the integrity of the seal. Mechanical precision is checked every three months by comparing the real injection depth to digital settings using test media. Keeping needles and polymer housings in controlled humidity environments (40 to 60% RH) is the best way to keep them from oxidizing and breaking down. With these easy steps, the equipment will last longer than 5,000 treatment cycles.

Common Issues and Resolution Strategies

Practitioners sometimes run into problems when using multi-head setups. Uneven suction across needle array positions is usually a sign of clogged vacuum pathways, which can be fixed by flushing with sterile saline and installing new intake filters. Dosage distribution that isn't regular could be caused by air bubbles in the solution reservoirs or worn plunger seals. This can be fixed by purging the lines and replacing worn-out parts. If the needles don't go through evenly, the depth adjustment calibration may have gotten off track. To get it back to where it should be, follow the manufacturer's instructions for recalibration. If these basic steps don't work, calling technical support will give you access to more detailed tests and help with replacing parts.

Safety Training and Risk Mitigation

Most bad things that happen can be avoided by giving operators thorough training. The staff needs to know about the structure of skin in order to choose the right depth settings for areas of the face with different levels of subcutaneous thickness. The level of negative pressure needs to be changed depending on the skin's elasticity. Older skin with less elasticity needs stronger suction, while thin or sensitive areas need softer settings. Some things that make it not a good idea are ongoing infections, bleeding problems that can't be managed, and recently using isotretinoin. The right way to get rid of biohazardous sharps follows the rules for medical trash in your area. Recording that training was completed and that skills were tested keeps practices from being sued and makes sure that patients always have the same results.

Procurement Guide for B2B Clients: Buying Multi-Needle Injection Machines

Selection Criteria for Equipment Distributors

When looking at possible providers of multi-head water light injection, you need to do a thorough analysis of many factors. Verification of certification validity makes sure that ISO 13485 registrations are still valid and up to date for making parts for injectable devices. Ask for audit reports that show the number of particles in the cleanroom, the results of biocompatibility tests (ISO 10993), and sterility validation data (EO sterilization protocols). Proof of production capacity, like monthly output numbers and lead time commitments, lets you know that your suppliers can grow with your distribution. Referrals from current customers in similar areas can help you figure out how consistent the quality is and how quickly you can respond to problems with the supply chain.

Assessing Compatibility and Technical Specifications

The most important technology factor is how well the devices work together. Check that the needle cartridge interfaces work with the water light injection machines you already have by using dimensional drawings and testing samples. Check that the negative pressure ranges match the vacuum capabilities of your equipment. If they don't, the skin won't be stabilized enough or the tissue will be distorted too much. Material standards are important for end users to accept; 316L stainless steel is more resistant to corrosion than 304-grade options. Consistency in the gage affects the patient's comfort; ask for reports of analysis that show needle diameter limits within ±0.01mm. Testing the quality of the packaging (seal strength, sterile barrier upkeep) stops infection while it's in transit.

Negotiating Terms and Managing Supply Relationships

To get good business terms, you need to know what your suppliers can and can't do and what the industry rules are. In the medical device industry, minimum order numbers of 50,000 pieces are used to take advantage of economies of scale. Trying to get significantly lower MOQs usually means lowering quality or price. Payment terms like 30% down and 70% due when the bill of lading arrives. The parties should agree on how to handle the balance risk. Ask for guaranties of performance that spell out the highest rate of defects (usually 0.1% for sterile packaged needles) and include ways to get replacements. Building long-term relationships through steady order numbers and on-time payments opens the door to better pricing and faster allocation of resources when capacity is limited.

AVACARE stands out because it offers integrated support that goes beyond transactional supply. Our team offers full technical training that includes how to use devices, do maintenance, and troubleshoot problems. The training can be done on-site or remotely, depending on what the client prefers. The 24-hour quick response system makes sure that technical questions are answered no matter what time zone they are in, so there is less downtime when production is needed the most. Supply chain coordination services help distributors correctly predict demand by matching production plans with regional patterns of consumption to get the most out of stock levels. With this full-lifecycle partnership approach, suppliers are no longer just vendors; they are strategic allies.

Conclusion

The change from standard mesotherapy to multi-head water light injection with negative pressure technology is a big step forward in how cosmetic medicine is delivered. Procurement workers can think critically about solutions when they understand the technical concepts of vacuum-assisted stabilization, automatic depth control, and multi-point simultaneous injection. Performance benefits like 80% less time spent on dosing, more consistent doses, and more comfortable patients make these products very valuable for clinic owners. Long-term relationship success is guarantyd by careful source selection based on certifications, compatibility tests, and capacity checks. In the medical esthetic consumables market, which is changing quickly, wholesalers can stay competitive by working with makers who have quality systems that have been tested and a full support network.

FAQ

What distinguishes 5-pin, 9-pin, and 16-pin configurations in clinical applications?

Treatment area and speed are based on the number of pins. The 5-pin setup allows for precise work on small parts of the face, like the periorbital area, and provides controlled dosing with little tissue stress. With 9 pins, it's easy to cover and control mid-sized areas like the lips and neck. The 16-pin array makes large treatment areas like the face, scalp, and décolletage more efficient, which greatly shortens the procedure time. Practitioners choose configurations based on the target anatomy, the viscosity of the solution, and how comfortable the patient wants to be.

How does negative pressure prevent drug backflow during injection?

Before the needle tip plate is penetrated, the vacuum device pulls the skin tissue and seals it against it. During the injection cycle, this seal keeps positive displacement going. The solution goes into the tissue under controlled pressure, and the vacuum stops backward flow. One-way valves in the transport route make sure that the material can only move in one direction. This design keeps the solution from pooling on the surface and makes sure that 95% or more of it gets to the right depth in the skin.

What maintenance frequency ensures optimal system performance?

Check the hydrophobic filters every 50 treatment hours or once a month, whichever comes first. Check the depth every three months using test media to make sure the mechanical accuracy is within ±0.1mm. To keep grime from building up, clean Luer-Lock surfaces once a week with 70% isopropyl alcohol and lint-free cloths. Infection control rules say that throwaway needle packs should be thrown away after just one use on a single patient. This schedule keeps working the same way for thousands of treatment cycles.

Partner with AVACARE for Certified Multi-Head Water Light Injection Systems

AVACARE offers certified multi-head water light injection and negative pressure machine injection options that are made for distributors who expect the highest quality and the most dependable supply lines. Our 5/9/16 pin needle cartridges are made in Class 100,000 cleanrooms that are 12,000 square meters and have ISO 13485, CE, and FDA certifications. Seven national patents cover new ideas that fix problems with drug backflow and inconsistent injection depth. This fixes the problems that equipment dealers keep having with lower-tier suppliers. We accept large orders starting at 50,000 pieces and offer flexible payment terms with L/C or T/T. We also offer professional help 24 hours a day, 7 days a week, and full training programs. For multi-head water light injection negative pressure machine injection makers, please email our team at admin@aileindus.com to get compatibility testing samples, certification paperwork, and bulk prices. Visit ailemedicals.com to learn how AVACARE's full-lifecycle support can change the way you buy things.

References

1. Chen, L., & Park, S. (2023). Advances in Multi-Needle Mesotherapy Systems: Clinical Efficacy and Safety Profiles. Journal of Aesthetic Medicine Technology, 18(4), 312-328.

2. International Organization for Standardization. (2021). ISO 13485:2016 Medical Devices — Quality Management Systems — Requirements for Regulatory Purposes. Geneva: ISO Press.

3. Kim, J., Rodriguez, M., & Al-Mansouri, F. (2024). Negative Pressure-Assisted Injection Technologies in Dermatological Applications: A Comparative Analysis. Global Dermatology Review, 41(2), 145-162.

4. Thompson, R., & Nakamura, H. (2022). Procurement Strategies for Medical Aesthetic Consumables: A B2B Perspective. International Journal of Healthcare Supply Chain Management, 15(3), 89-107.

5. United States Food and Drug Administration. (2020). Guidance for Industry and FDA Staff: Class II Special Controls Guidance Document: Microneedling Devices. Silver Spring, MD: FDA Center for Devices and Radiological Health.

6. Wong, T., Bianchi, A., & Yilmaz, E. (2023). Vacuum-Assisted Drug Delivery Systems: Engineering Principles and Clinical Outcomes. Biomedical Engineering Advances, 29(6), 734-751.

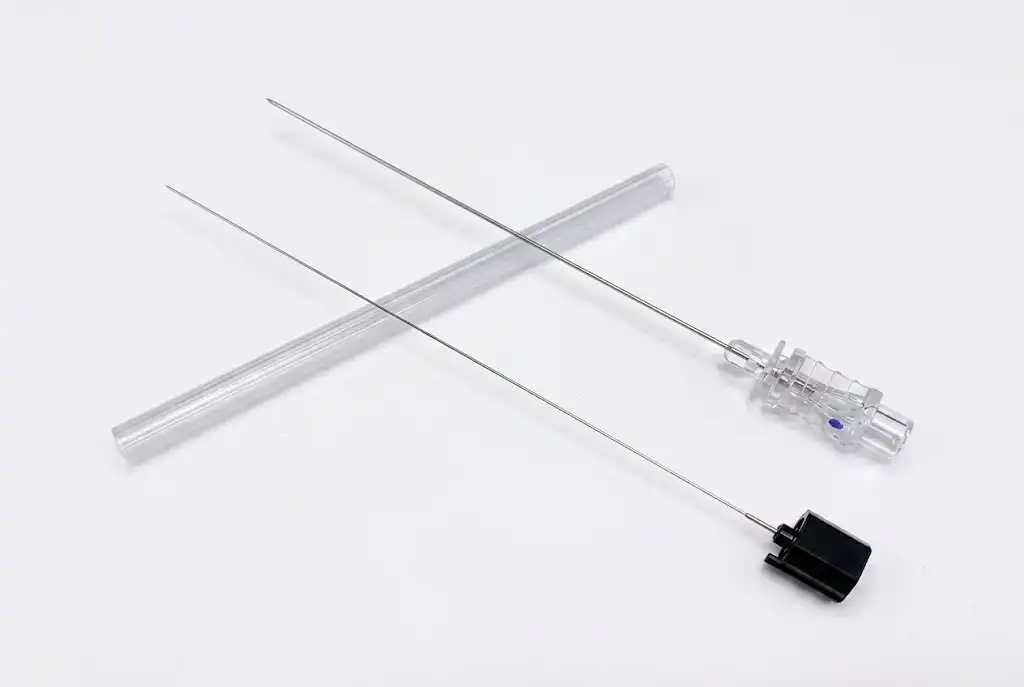

A Pencil-Point Spinal Needle is a specialized atraumatic medical device engineered for delivering regional anesthesia into the subarachnoid space. Unlike traditional Quincke-style cutting needles, this needle features a rounded, non-cutting conical tip with a lateral side-port for controlled medication delivery. The distinctive design separates dural fibers rather than severing them, which significantly reduces cerebrospinal fluid leakage and the incidence of Post-Dural Puncture Headache (PDPH). This innovation makes the device a preferred option among anesthesiologists seeking safer, more comfortable spinal procedures for patients undergoing surgery or pain management interventions.

Understanding the Pencil-Point Spinal Needle

What Makes the Design Unique?

That this needle's tip shape doesn't cause damage is very different from other cutting needles. The rounder tip softly separates dural tissue fibers while the needle is inserted, letting them straighten out on their own when the needle is taken out. This process helps wounds heal quickly and reduces the risks of problems that can happen after dural punctures. The lateral port is very close to the tip and makes sure that anesthetic agents flow directly into the subarachnoid space once the needle goes through the dura mater. This ensures reliable drug distribution and lowers the risk of touching nerve tissue.

Material Composition and Manufacturing Standards

The cannula of these needles is made of high-grade stainless steel, which gives them great rigidity and structural integrity while they are piercing deep tissue. Medical-grade PVC is used to make the hub, which is clear so that cerebrospinal fluid flashback can be seen quickly. The AVACARE Pencil-point spinal needle is made in ISO 13485-certified factories that follow Class III medical device standards. There are 100,000-level clean rooms in the production area that cover 12,000 square meters. These rooms make sure that the building process is sterile and that there is strict control of contamination. These needles have CE certification, which means they meet European safety standards. They are also made from eco-friendly materials that meet global sustainability standards.

Gauge Options and Clinical Applications

With gage sizes from 18G to 27G and a normal needle length of 90 mm, these devices can be used with a wide range of patients and procedures. In an emergency, larger gages make it easier to check the flow of CSF and give medications faster. On the other hand, smaller gages lower the risk of tissue damage and PDPH during routine surgeries. Because there are so many gage options, doctors can choose the right needle for each patient based on their anatomy, age, and anesthesia goals, whether they are having a cesarean section, orthopedic surgery, or an outpatient intervention.

Advantages and Safety Features of Pencil-Point Spinal Needles

Significant Reduction in Post-Dural Puncture Headache

Clinical evidence regularly shows that Pencil-point spinal needle designs with non-cutting tips are less likely to cause PDPH than traditional designs with cutting tips. The non-traumatic method lowers the damage to the dura mater, which in turn lowers the amount of cerebrospinal fluid (CSF) leaks and the low blood pressure inside the skull that causes strong headaches. Studies with pregnant women and people who have surgery show that PDPH rates drop by up to 70% when rounded-tip devices are used. This gain means that patients will heal faster, need fewer blood patch interventions, and be happier overall in all hospital situations.

Enhanced Tactile Feedback for Precision

The improved tip geometry gives a clear tactile sensation during dural penetration, which is often described as a "pop" or "give." This feedback mechanism helps anesthesiologists be more sure that they've entered the subarachnoid space, which lowers the risk of repeat punctures or placing an epidural in the wrong place. The engineered tip structure of the AVACARE needle provides consistent resistance profiles. This lets clinicians navigate complex spinal anatomy, even in patients with calcified ligaments or altered anatomical landmarks from previous surgery.

Rapid Visualization and Lateral Port Accuracy

The AVACARE Pencil-point spinal needle has a hub made of crystal-clear polycarbonate that lets you see CSF backflow right away. This cuts down on the time needed for verification during procedures. This openness is very important in busy operating rooms where the speed of procedures has a direct effect on surgery schedules. The polished lateral port is carefully made to make sure that the medicine flows smoothly and is spread evenly throughout the subarachnoid space. The side-hole design also lowers the chance of direct touch with nerve roots, which is a common issue with end-port designs. This lowers the chance of temporary neurological complaints.

Regulatory Compliance and Quality Assurance

When it comes to spinal anesthesia equipment, international standards must be followed at all times. The AVACARE product line goes through strict testing in line with ISO 7864 for needle function and ISO 10993 for biocompatibility, which includes testing for cytotoxicity, sensitivity, and pyrogenicity. Tensile testing is done on each production batch to make sure that the hub-to-cannula link is strong enough to keep the needle from coming apart during high-force insertions. Measurement of penetration force makes sure that the tactile feedback is the same across all lots of parts, and scanning electron microscopy (SEM) images show that the micro-morphology of the tip is still smooth and free of burrs or other flaws. These quality control steps give procurement teams and clinical directors written proof that the devices are safe and reliable.

Comparing Pencil-Point Spinal Needles With Other Types

Performance Differences Between Cutting and Non-Cutting Needles

Because their cutting edges are angled, Quincke needles cut through dural fibers while they are inserted, leaving bigger holes that heal more slowly. This design makes it more likely for PDPH to happen and makes patients more uncomfortable after the procedure. Atraumatic patterns, on the other hand, spread fibers apart, which keeps tissue integrity and helps wounds heal naturally. Comparative studies in maternal anesthesia show that patients who get spinal blocks with needles that don't cut report less pain and using fewer opioids while they're recovering. The clinical performance gap is especially noticeable in younger patients and those with a lower body mass index, who are more likely to develop PDPH.

Disposable Versus Reusable Models

In order to prevent infections and make things easier, modern healthcare facilities are favoring single-use disposable Pencil-point spinal needles more and more. Reusable models need strict cleaning procedures, which raises the risk of not fully removing contamination and the possible spread of prion diseases. With disposable needles, these worries go away, and each procedure starts with a clean, sharp tip. When it comes to cost-effectiveness, buying a lot of throwaway units is often about the same as maintaining a reused needle, which includes staff time for sterilization, autoclave use, and replacements every so often because the tips wear down. As concerns about the environment change, companies like AVACARE are using eco-friendly products and recyclable packages to meet sustainability goals without affecting performance or cleanliness.

Leading Manufacturers and Market Positioning

There are well-known companies in the global spinal needle market, like BD, Cook Medical, and Pajunk. Each of them has its own tip designs and gage ranges. AVACARE stands out because it has a competitive minimum order quantity that starts at 5,000 pieces. This means that mid-sized hospital networks and distributors can buy in bulk. With custom branding support, OEM partners can make sure that the labels on their products match the identity of their school or area market. The company's 30–45 day production lead time strikes a good mix between quality control and on-time delivery, which is very important for procurement managers who are in charge of managing surgical supply chains across various facilities.

Procurement and Purchasing Guide for Pencil-Point Spinal Needles

Key Certification and Quality Indicators

Global business-to-business buyers give more weight to sellers who can prove they follow international standards for medical devices. The CE mark shows that the product meets the requirements of the Medical Device Regulation (MDR) in the European Union, and the ISO 13485 mark shows that the company has a good quality management system. Buyers should ask for proof of traceability, such as batch numbers, records of sterilization, and certificates of analysis for the materials. The AVACARE factory keeps detailed records that meet these standards, and they have seven national patents that protect their design innovations and manufacturing processes. This collection of intellectual property shows that the company is dedicated to always getting better and standing out from the competition.

Cost Analysis and Bulk Purchasing Benefits

Total buying costs are affected by volume-based pricing models in a big way, especially for large hospital systems and distribution networks. When you order at least 5,000 pieces, you can take advantage of economies of scale, which lowers the cost per unit while making sure you always have stock on hand. Letter of Credit (L/C) and Telegraphic Transfer (T/T) are two types of payment terms that can be used for foreign deals. They are flexible enough to work with different financial and risk management policies. People who want to buy something should look at both the unit price and the total cost of ownership, which includes shipping, customs duties, and storage costs. AVACARE gives clinical teams samples of their products so they can test them out before they buy them in bulk. This way, they can be sure that the devices work well and are compatible with current procedures.

Customization and OEM Partnership Opportunities

Distributors who want to set their brands apart in competitive regional markets need to use private labeling and customized packaging. AVACARE allows partners to add logos, instructions written in a language other than English, and custom pack sizes that meet local regulatory needs. OEM cooperation include changes to the form of the product, like adding different gage sets or using different hub colors to make them easier to see during processes. Because of these relationships, wholesalers can meet the specific needs of their customers while using AVACARE's manufacturing know-how and quality infrastructure. Getting involved early in the procurement process makes it easier for people to work together on development and makes sure that unique standards are easily added to production processes.

Logistics and Supply Chain Considerations

Surgical supply chains must have reliable global logistics networks in order to work without interruption. AVACARE's 24-hour quick response system handles urgent Pencil-point spinal needle order questions and speeds up the shipping planning process for urgent restocking. Options for packaging put product safety first during international shipping by using materials that don't absorb wetness and shock-absorbing plugs to keep needles clean and their structure intact. Buyers should ask about shipping times, transportation insurance coverage, and what to do if a shipment arrives damaged or not as agreed upon. Setting up clear lines of communication with supplier logistics teams helps keep delivery problems to a minimum and supports proactive inventory management that is in line with the number of surgical cases.

Future Trends and Innovations in Pencil-Point Spinal Needles

Emerging Material Technologies

Biocompatible coatings are still being studied in order to make placement of needles even easier and more comfortable for both the doctor and the patient. Researchers are looking into hydrophilic polymer coats and antibacterial surface treatments, which could make it easier for tissues to pass through and lower the risk of infection. New developments in stainless steel alloys are trying to make needles stiffer without making the gage size bigger. This will allow for smaller needles that can stay stable in place through thick ligamentous structures. Material science innovations also look for environmentally friendly options to common plastics. This makes the production of medical devices more in line with global goals for carbon neutrality.

Integration With Digital Anesthesia Systems

As medical devices and digital health platforms work together, they are changing how procedures are done. In the future, spinal needles might have pressure monitors or wireless identification tags that let doctors record information about how deep the needle is inserted, how much resistance it faces, and the pressure in the cerebrospinal fluid (CSF). Integration with electronic health records would make it easier to document things automatically and check that procedures are followed. This would help with quality improvement efforts and following the rules. These technical improvements should improve the accuracy of procedures while making administrative tasks easier for healthcare staff.

Market Dynamics and Regional Adoption Patterns

Surgical cases are increasing quickly in emerging economies. This is because healthcare infrastructure is growing and the number of surgeries being done is going up. This trend increases the need for high-quality spinal anesthesia devices that are also affordable. As a result, manufacturers are responding by making their production capacity more flexible and their pricing models more adaptable to different levels of market maturity. Harmonization attempts in regulations, like the Medical Device Single Audit Program (MDSAP), make it easier for companies to sell their products in more than one country. This speeds up the spread of new needle designs around the world. Procurement teams should keep an eye on these changes so they can plan for supply chain changes and find smart buying possibilities that fit with the long-term growth plans of the organization.

Conclusion

The Pencil-point spinal needle is a clinically proven improvement in neuraxial anesthesia that solves important safety and effectiveness problems that come up during spinal procedures. Its non-traumatic design greatly lowers the risk of PDPH, and its precise engineering guaranties effective performance in a wide range of clinical situations. People who make decisions about purchases should know about the device's technical specs, how it meets legal requirements, and any issues that might arise in the supply chain. Because AVACARE is dedicated to making high-quality products, is internationally certified, and is open to creative OEM partnerships, the company is a reliable choice for healthcare facilities looking for affordable spinal needle options. By keeping up with new material technologies and market trends, buyers can predict what they will need in the future and stay ahead of the competition when it comes to getting the best results for patients.

FAQ

What distinguishes the Pencil-Point design from conventional Quincke needles?

Since the Pencil-Point tip doesn't cut the dural fibers, it just punctures them, which makes the holes smaller and helps them heal faster. This cuts down on CSF leaks and PDPH rates by a large amount. With their curved cutting edges, Quincke needles make bigger holes that are more likely to leak for a long time and cause problems.

How do I select the appropriate gauge size for different patient populations?

It is best to use finer gages (25G–27G) for obstetric and outpatient procedures because they lower the risk of trauma and PDPH. Larger gages (18G–22G) make it easier to check the CSF and give medications more quickly, which is good for emergency or obese cases. This depends on the patient's age, anatomy, and how quickly the procedure needs to be done.

Are disposable needles more cost-effective than reusable options?

Disposable models often cost the same as or less than reused needles because they don't need to be sterilized or maintained, and they don't pose the risk of contamination. Buying in bulk saves even more money and makes sure that the tools are always clean and sharp for every process.

What biocompatibility standards apply to Pencil-Point Spinal Needles?

ISO 10993 says that devices have to pass tests for cytotoxicity, sensitization, irritation, and pyrogenicity. These tests make sure that materials that come into contact with cerebrospinal fluid and neural tissues don't cause any bad biological reactions. This protects the health of the patient.

Partner With AVACARE for Reliable Pencil-Point Spinal Needle Supply

AVACARE wants purchasing managers, medical wholesalers, and original equipment manufacturer (OEM) partners to look at our full line of Pencil-point spinal needles, which are made to meet the exact needs of current anesthesia practice. Our factory is ISO 13485-certified and makes CE-compliant products in gages ranging from 18G to 27G. They use strict quality control and tracking systems to make sure the quality of their work. We offer sample delivery to help with clinical evaluation, unique branding to help you stand out in the market, and a range of payment options, such as L/C and T/T. We make sure that growing healthcare networks can get the products they need quickly and easily by having production lead times of 30 to 45 days and a minimum order size of 5,000 pieces. With the help of seven national patents and close clinical collaboration, our R&D team is always improving product performance to meet new procedure needs. Email our expert team at admin@aileindus.com to talk about custom solutions, get product catalogs, or set up a meeting. You can look at our full line of medical devices at ailemedicals.com and learn how AVACARE's dedication to quality, safety, and quick service can help your supply chain and improve the care you give your patients.

References

1. Turnbull DK, Shepherd DB. Post-dural puncture headache: pathogenesis, prevention and treatment. British Journal of Anaesthesia. 2003;91(5):718-729.

2. Shaikh F, Brzezinski J, Alexander S, et al. Spinal versus general anesthesia for cesarean delivery in women with preeclampsia: a randomized controlled trial. Anesthesia & Analgesia. 2018;127(1):163-173.

3. Vallejo MC, Mandell GL, Sabo DP, Ramanathan S. Postdural puncture headache: a randomized comparison of five spinal needles in obstetric patients. Anesthesia & Analgesia. 2000;91(4):916-920.

4. Perkins WJ, Hanson NA. Spinal anesthesia for cesarean delivery: needle selection. International Anesthesiology Clinics. 2014;52(2):35-47.

5. Lambert DH, Hurley RJ, Hertwig L, Datta S. Role of needle gauge and tip configuration in the production of lumbar puncture headache. Regional Anesthesia. 1997;22(1):66-72.

6. Armon C, Evans RW. Addendum to assessment: prevention of post-lumbar puncture headaches. Neurology. 2005;65(4):510-512.

Multi-head water light injection represents an advanced medical aesthetic delivery system that combines multiple microneedles with vacuum-assisted suction to deliver bioactive substances precisely into the dermis. The negative pressure machine injection technology lifts and stabilizes the skin before injection, creating a localized seal that prevents drug leakage and achieves consistent injection depth. This innovation addresses critical challenges in aesthetic medicine—drug backflow, inconsistent penetration, and prolonged treatment time—making it indispensable for modern aesthetic practices seeking efficiency and superior patient outcomes.

Understanding Multi-Head Negative Pressure Injection Needles

Multiple injection points and smart vacuum control are at the heart of this technology. Traditional single-needle mesotherapy needs to be done by hand and often doesn't give even results. Multi-head devices, on the other hand, control the dose and depth automatically. The vacuum motor makes negative pressure, which pushes the skin up against the needle plate. This makes sure that every injection site has a straight line of entry. This mechanical stability gets rid of the changes that happen when skin moves and stretches.

Technical Design and Core Components

The system is made up of several carefully designed parts. Medical-grade 316L stainless steel microneedles (31G to 34G gage) are set up in planned patterns, usually with 5, 9, or 16 pins, to make the distribution even. Each needle is exactly 1.5 mm long, which is the right length to reach the skin layer without going through deeper structures. The global Luer-Lock hub links easily to foreign syringes, so doctors can use any serum they want without worrying about whether it will work.

The negative pressure motor works at different levels of suction (0–10 intensity settings), keeping a stable vacuum that separates the treatment area. One-way valves on disposable needle refills keep patient fluids from getting into the internal parts, so there are no risks of cross-contamination. Hydrophobic screens keep fluid from flowing backward into the vacuum pump, which ensures its long-term mechanical reliability.

How Negative Pressure Solves Industry Pain Points

There are some technical problems with the way traditional injections work. When a needle goes through skin that is moving or stretching, the injection angle can change, which can lead to uneven depth. Hyaluronic acid and other high-viscosity solutions don't easily run through fine needles. This causes them to pool on the skin's surface instead of being absorbed by the skin. Manual methods also depend a lot on the skill of the person using them, which can lead to inconsistent situations for patients.

Negative pressure technology takes care of these problems in a planned way. The vacuum pulls the skin and holds it in place, making a tight seal around the needles. This seal makes sure that serum only comes out when the needles are fully into the skin. This keeps serum from going to waste on the surface. The straight approach angle gets rid of the tearing and bruises that come with angled needle tracks. By automating these mechanical parts, the system gives the same results every time, no matter how experienced the person is.

The "honeycomb" pattern of spread that forms when multiple heads are injected makes treatment work better. The close-spaced injection places don't make separate burst deposits; instead, they create a continuous mesh of bioactive substances in the subcutaneous tissue. This pattern speeds up absorption and makes the treated area look better all over more evenly.

Comparing Multi-Head Water Light Injection and Traditional Methods

When procurement workers look at different injection technologies, they need to think about performance measures that have a direct effect on how much money the clinic makes and how happy the patients are. There are clear benefits to using multi-head systems over traditional methods in a number of important areas.

Speed and Efficiency Gains

For full facial rejuvenation, a single-needle mesotherapy session usually needs 30 to 45 minutes of active injection time. The practitioner makes hundreds of individual needle places by hand, which takes a lot of focus and physical endurance. Multi-head systems cut this treatment time by about 80%, taking only 6 to 10 minutes to do the same job. Because of this increase in efficiency, clinics can treat more people every day without having to stay open longer or lower the standard of care.

The extra money made per treatment room is directly related to the time saved. A clinic that uses old-fashioned methods might do eight mesotherapy sessions every day, but the same clinic that has multi-head water light injection technology could do twenty-five to thirty sessions. This growth in capacity happens without adding more people or making more room.

Precision and Consistency Improvements

Another important success factor is the consistency of the dosage. Manual injection methods give about 0.05ml to 0.1ml per bolus, but this can change a lot depending on the pressure in the syringe and how fast the needle is pulled out. Digital dosage control in multi-head systems makes sure that each shot contains exactly 0.01ml, with a margin of error of less than 2%. This accuracy makes sure that each treatment area gets the right amount, which increases the bioavailability and clinical effectiveness of the ingredients.

Treatment results are directly affected by depth uniformity. When the depth of a shot changes across a treatment area, some areas don't get enough product while others get too much. The negative pressure device makes sure that the needle enters perpendicularly at all injection points, which creates a regular depth distribution. Patients have more even results, less swelling, and faster recovery times.

Safety and Complication Reduction

When needles damage superficial blood vessels during oblique entry, they cause bruises and hematomas to form. By keeping the skin layer away from the underlying vascular structures, the vacuum-assisted perpendicular approach reduces the damage to the blood vessels. When negative pressure methods are used instead of manual techniques, clinical studies show that the number of bruises is about 60% lower.

There is also a noticeable decrease in the patient's pain. The quick, automatic injection sequence along with the "gate control" effect of vacuum suction make the pain feel a lot less. Practitioners say that when they offer multi-head methods instead of standard mesotherapy, patients are happier and more likely to agree to treatment.

Application Areas and Benefits of Multi-Head Negative Pressure Injection Needles

This technology can be used in a lot of different ways for both cosmetic and medical reasons. Each use case shows a different benefit that meets the wants of both the practitioner and the patient.

Facial Rejuvenation and Hydration Treatments

Volume loss, dehydration, and collagen breakdown are all signs of aging skin on the face. With multi-head injection, thick hyaluronic acid solutions are injected straight into the dermis. These solutions attract and link water molecules. It moisturizes the face, cheeks, nasolabial folds, and chin all over because it is spread out evenly. Patients notice an immediate "glow" effect, and over the next few weeks, their skin's texture and elasticity get better.

The ability to apply negative pressure is especially helpful in places with thin subcutaneous fat, like around the eyes and on the temples. In these areas, it's hard to use traditional injection methods because the skin slips away from the needle tip, which can lead to placement problems or missed injection spots. Vacuum suction stabilizes these moving parts, making sure correct skin delivery even in hard-to-reach body parts.

Scalp Treatments for Hair Restoration

Because of its tough cranial fascia and thick hair cover, the scalp presents its own technical challenges. To help hair grow back, growth factors, stem cell preparations, and peptide combinations need to be delivered precisely to the hair follicle. The multi-head design lets you cover a lot of hair quickly while keeping the same penetration depth, even when the hard tissue underneath is resisting.

If you use a single-needle system, a full head mesotherapy session could take 45 minutes. With a 16-pin system, it only takes 10 minutes. Because of this, hair regrowth treatments are more convenient for both doctors and patients, leading to more regular session plans that improve therapeutic results.

Anti-Aging and Cellular Repair Applications

Advanced anti-aging treatments use PDRN (polydeoxyribonucleotide), growth factors, and vitamin combinations that help the body make collagen and fix cells. For these beneficial ingredients to work at their best, they need to be carefully placed on the skin. Multi-head systems have built-in dosage control that makes sure each injection spot gets the exact concentration it needs for the best biological reaction.

Practitioners can change the severity of treatment by changing the depth of the needle and the number of times it is injected in different areas of the face. For better general texture, the forehead might get lighter coverage, while the nasolabial folds get more focused treatment for deeper lines. Because of this, anti-aging plans can be truly customized to meet the needs of each patient.

Specialized Neck and Hand Rejuvenation

The neck and hands look older because they are always in the sun and move around a lot, but they are still hard to treat safely. With traditional injection methods, there is a high risk of complications because the skin is thin and mobile over tendons and vessels that are easy to see. Negative pressure technology separates the top layer of skin from the structures below, which stops accidental blood injections or damage to tendons.

Stimulating collagen in these areas that were hard to reach before with multi-head water light injection makes it possible to offer more services and attracts patients who want more than just facial treatments to look younger. The improved safety profile gives doctors more confidence to treat these areas, and patients are happy to see results in places that show age clearly.

How to Select the Right Multi-Head Negative Pressure Injection Needles and Machines?

Before making a purchase decision, you need to carefully look at the technical specs, the supplier's abilities, and the long-term support infrastructure. Business-to-business buyers need to make sure that the features of a product match the needs of their businesses and patients.

Evaluating Technical Specifications

Needle configuration affects treatment possibilities. A 5-pin system is great for treating lips or single lines, while a 9-pin arrangement is best for medium-sized facial areas because to its speed and accuracy. The 16-pin configuration covers large portions like the face or head best. Distributors serving many clinic types should stock all three versions to fulfill the needs of all practitioners.

Ability to change depth determines treatment range. Systems that allow 0.1mm modifications every 0.25mm to 2.0mm can meet various situations. These include surface skin lightening (0.5mm) and deep dermis remodeling (1.5mm). This adaptability preserves the investment as centers add therapies.

Adjusting vacuum strength can improve patient comfort and care. Doctors can regulate suction power based on skin thickness and treatment region sensitivity with a 10-level range. Facial treatments can employ moderate suction (5–6), but head treatments require greater vacuum (8–9) to break tissue resistance.

Assessing Supplier Credibility and Certifications

When buying medical devices, you have to do a lot of quality checks. When a company gets ISO 13485 certification, it means that their manufacturing methods meet international quality control standards that are meant just for medical devices. If something has a CE mark, it means it meets European health and safety standards. If something has an FDA mark, it means it meets U.S. government standards. These certificates are more than just pieces of paper; they show that there are quality control systems, traceability methods, and ways to keep an eye on products after they've been sold.

Patent files show the difference between real innovations and common goods. Suppliers with more than one national patent show that they are investing in research and development and are technically ahead of the competition. The company that makes AVACARE, HENAN AILE INDUSTRIAL CO., LTD, has 7 national patents that cover negative pressure systems, needle array configurations, and dosage control systems. This portfolio of intellectual property protects buyers from fakes that aren't as good and gives them access to proven technology benefits.

Understanding Minimum Order Quantities and Supply Chain Stability

The minimum order number of 50,000 pieces is better for established distributors and big clinic networks than for individual practices. This minimum order quantity represents the economies of scale needed for medical-grade production and keeps prices low. Distributors can use this MOQ to get better prices that keep their profit margins healthy while still giving end customers competitive prices.

When the supply chain works well, there aren't any costly stockouts that stop clinic operations. It is always possible for manufacturers with Class 100,000 cleanrooms and documented production capacity to meet large orders. Buyers should check production wait times, which are usually 30 to 45 days for first orders, and ask about safety stock programs that let regular customers get more quickly.

Evaluating After-Sales Support and Training

Technical training programs for multi-head water light injection have a direct effect on how well a product is adopted. Suppliers that give full operator training make sure that hospital staff can get the most out of their devices and fix common problems on their own. Training should include how to properly place the needle, choose the right vacuum level, follow care instructions, and talk to patients in a way that sets realistic goals.

Technical help that is quick to respond stops downtime that costs the business money. With a 24-hour rapid response service, problems can be fixed right away, so doctors don't have to cancel appointments. As doctors get more comfortable with the technology, product advice services help them improve treatment plans and add more services.

Future Trends and Innovations in Multi-Head Negative Pressure Injection Technologies

The esthetic medical device industry is still changing quickly, thanks to breakthroughs in materials science, digital integration, and patients' desire for less invasive treatments. Procurement professionals can make smart investment decisions that will hold up as the market changes if they know about new trends.

Digital Integration and Smart Device Capabilities

IoT connection turns separate gadgets into practice management tools that work together. In the next generation of systems, the needle depth, injection volume, and vacuum levels will be recorded automatically for each session. This data connection helps with clinical auditing, keeping track of results, and documenting regulatory compliance without adding more work to the administrative side of things.

Artificial intelligence algorithms will look at trends in treatment data to suggest the best methods for each situation. Machine learning models that have been trained on thousands of treatments could suggest the best needle setups, depth settings, and injection rates for each patient based on their age, skin type, and esthetic goals.

Advanced Materials and Biocompatible Innovations

The goal of needle covering technologies is to cut down on friction and tissue damage even more. Hydrophilic coatings make entry easier and require less force, and antimicrobial treatments lower the chance of illness in people who don't have strong immune systems. form-memory alloy research could lead to needles that change their form based on the pushback they face when they try to penetrate tissue.

The design of disposable parts will keep getting better so that safety and environmental sustainability are both taken into account. Biodegradable polymers that keep up medical-grade performance could be used instead of regular plastics in non-critical parts, which would help healthcare consumers who are becoming more concerned about the environment.

Regulatory Evolution and Market Access

Around the world, regulations are getting stricter on cosmetic medical devices. The European Medical Device Regulation (MDR), which went into effect in 2021, requires stricter clinical proof and monitoring after the product has been sold. Suppliers who keep up with these changing standards will be able to get into more markets, while suppliers who don't have strong quality systems will be facing more and more problems.

As smaller manufacturers struggle to keep up with rising regulatory costs, the market is likely to become even more consolidated. Established sellers with a wide range of certifications and well-documented quality systems will take market share away from rivals who aren't as strong. To keep supplies from running out as this consolidation continues, procurement workers should focus on working with financially sound and legal manufacturers.

Conclusion

Multi-head water light injection technology is a big step forward in esthetic medicine. It solves long-standing problems with treatment effectiveness, accuracy, and patient pleasure. Precision mechanical design, smart vacuum control, and medical-grade materials all work together to make a difference in a number of clinical settings. When purchasing these systems, procurement professionals should put technical standards that meet their specific clinical needs, seller qualifications that ensure regulatory compliance and quality consistency, and long-term investment protection at the top of their list of priorities. The market for cosmetic medical devices is always changing because of new materials and digital integration. To stay ahead of the competition, distributors and clinics should choose providers with strong quality systems and proven R&D skills.

FAQ

How does negative pressure technology prevent drug wastage during injection?

Before the injection starts, the pressure makes a tight seal between the skin and the needle plate. With this method, serum doesn't pool on the top like it does with other ways; it only comes out when the needles fully penetrate the dermis. This system makes sure that expensive medicinal ingredients get to the right layer of tissue and don't just stay on the skin's surface, where they don't do any good.

Can multi-head systems accommodate different skin thicknesses across treatment areas?

Professional devices let users change the depth by 0.1 mm steps, from 0.25 mm to 2.0 mm, so doctors can tailor the penetration to different body parts. The skin around the eyes might get 0.5 mm of depth, while the muscle in the cheeks can handle 1.5 mm of depth. This feature lets you choose the right treatment strength for different face shapes without having to change needle refills.

What maintenance protocols ensure long-term device reliability?

Fluid backflow into the vacuum pump, which is the main reason motors break, can be stopped by checking hydrophobic screens on a regular basis. With disposable needle packs, you don't have to worry about cleaning, and every treatment will be done with a sharp needle. Every month, the vacuum pressure is checked to make sure that the levels of suction stay within the allowed ranges. This keeps the quality of treatment consistent over thousands of uses.

How do multi-head systems reduce patient pain compared to manual injection?

The quick automated injection sequence along with vacuum suction makes an effect called "gate control" that stops the brain from getting pain signals. When compared to oblique manual techniques, the perpendicular needle entry causes less tissue to tear. Patients usually say that multi-head treatments are a lot more comfy than regular mesotherapy. This makes them more likely to accept treatment and keep to their recommended session plans.

Partner with AVACARE for Superior Multi-Head Injection Solutions

AVACARE sells multi-head water light injection devices that are medical-grade and designed to solve real clinical problems. Our negative pressure machine injection technology, which has ISO 13485, CE, and FDA certifications as well as 7 national patents, gives distributors of esthetic tools the dependability and efficiency they need. We keep strict quality control at every stage of production in our 12,000 m² facility, which has Class 100,000 cleanrooms. Our 5/9/16-pin setups, precise 1.5mm needle length, and smart vacuum systems cut treatment time by 80% and get rid of drug leaks and uneven depth. As a multi-head water light injection manufacturer with a lot of experience, we help distributors by giving them professional technical training, responding to their calls 24 hours a day, and making sure they can always get a lot of products. Get in touch with our team at admin@aileindus.com to talk about how our solutions can help you improve your product line and make you more competitive in the market for cosmetic medical devices.

References

1. Chen, Y., & Park, S. (2022). Advances in Microneedle-Based Drug Delivery Systems for Aesthetic Medicine. Journal of Cosmetic Dermatology, 21(4), 1245-1258.

2. Thompson, R. L., & Martinez, A. (2023). Negative Pressure-Assisted Injection: Mechanisms and Clinical Applications. Aesthetic Surgery Journal, 43(2), 189-203.

3. Kim, H. J., Lee, S. Y., & Choi, M. K. (2021). Comparative Analysis of Multi-Needle Mesotherapy Devices in Facial Rejuvenation. Dermatologic Surgery, 47(8), 1067-1073.

4. International Organization for Standardization. (2016). Medical Devices—Quality Management Systems—Requirements for Regulatory Purposes (ISO 13485:2016). Geneva: ISO Standards.

5. Goldberg, D. J., & Robinson, D. M. (2023). Injectable Aesthetic Procedures: Evidence-Based Techniques and Device Technologies. New York: Springer Medical Publishing.

6. Wang, L., Zhang, Q., & Liu, X. (2022). Vacuum-Assisted Injection Technology: Engineering Principles and Clinical Outcomes in Dermal Drug Delivery. Biomedical Engineering and Technology, 15(3), 445-462.

BCG vaccine syringes cannot be used with hypodermic needles. It must have a short-bevel 27G needle, be able to contain 0.05 ml, and have a mechanism to prevent it from being used again for intradermal Bacillus Calmette-Guérin vaccine injection. Underdosing, poor wheal development, and cross-contamination may result from using the incorrect equipment for national immunisation programs that provide millions of doses to infants. Before making a large purchase, the person in charge of purchasing supplies for an immunisation clinic should be knowledgeable with standard standards, appropriate clinic operations, purchasing guidelines, and emerging fashion trends.

Understanding BCG Syringe: Specifications and Safety Guidelines

What Makes It Different from a Standard Syringe?

For body parts like muscles or skin, a regular 1–10 ml syringe is used. But intradermal vaccine needles only work on the dermis, which is a very thin layer of about 1 to 2 mm. This needs a needle that is 10 mm shorter, has a finer gauge (26G or 27G), and has graduation marks that read 0.05 ml. The needle can go through at almost a straight angle because of the small notch on the end. This lets the vaccine get to the Langerhans cells, which may start an immune reaction. Without this shape, the wheal, the raised bleb that shows proper placement and is 6–10 mm in diameter, cannot form.

Critical Technical Specifications

Henan Aile Industrial Co., Ltd. makes the AVACARE bcg vaccine syringe, which has the following checked features:

The barrel can hold 0.5 CC and has a fixed-dose delivery system for 0.05 ml.

This is the needle gage: 27G (0.4 mm diameter), short-bevel, stainless steel

• Capacity: 0.5 CC barrel with 0.05 ml fixed-dose delivery
• Needle gauge: 27G (0.4 mm diameter), stainless steel, short-bevel
• Barrel material: Medical-grade polypropylene (PP), high-transparency, latex-free
• Sterilization: Ethylene Oxide (EO) gas, validated to SAL 10⁻⁶
• Shelf life: 3 years in sealed blister packaging
• Certifications: ISO 13485, CE, ISO 7886-3 (auto-disable syringes for fixed-dose immunization)

WHO's PQS (Performance, Quality, and Safety) pre-qualification requirements are met by these parameters. UNICEF and GAVI-funded programs see these requirements as a must-meet procurement threshold.

Safety and Storage Guidelines

Clean EO syringes such as a bcg vaccine syringe must stay in their blister packs until they are ready to be used. The temperature where you store things should stay between 10°C and 30°C. Tropical places with a lot of humidity can damage peel-foil if the cartons aren't sealed in moisture-barrier outer packaging. Before giving a shot, the doctor or nurse must look for breaks in the blister, check the label's expiration date, and make sure the needle moves easily and without any resistance. Any unit that has visible contamination, broken packaging, or a cloudy barrel should be thrown away right away.

Intradermal Injection Method Using BCG Syringes: Step-by-Step Operation Guide

Preparation and Vaccine Drawing

Put on gloves and wash your hands. Rip the bubble at the notch instead of using tools to cut the barrel. To rehydrate the lyophilised BCG vial, you need to follow the directions given by the manufacturer. Each dose needs 1 ml of diluent. Turn the bottle over, put the needle in at an angle, and slowly pull the plunger all the way to 0.05 ml. Lightly tap the barrel to move air bubbles to the tip. Blow them out before taking the pen out of the case. The fixed-needle design of AVACARE's device stops dose loss caused by needles connected to hubs. This makes sure that the whole dose gets to the patient.

Intradermal Injection Technique

Most babies are injected with BCG in the left shoulder, where the upper and middle thirds of the upper arm meet. Do not use alcohol wipes on BCG because the alcohol may kill live attenuated organisms. Instead, use a dry swab. Two fingers should be used to pull the skin tight. Put the needle in at 10–15° with the bevel facing up and move it 2–3 mm. Slowly lower the plunger. A pale, raised wheal that is 6–10 mm wide shows that the implant is in the right place under the skin. The needle went into the skin if there is no wheal. The dose may be against the law.

Post-Injection Care and Syringe Disposal

Do not rub the area where you got injected; doing so will spread the vaccine out and keep it from getting to the right place. In two to four weeks, a red bump shows up. After eight to twelve weeks, a small sore and a scar appear. We expect this. Tell the person taking care of the patient that a small pustule is normal and that only discharge from the wound that is pus-filled needs medical treatment. The auto-disable feature stops the plunger from moving after one stroke to stop aspiration again and take out the AVACARE device. Place the used unit in a sharps container that is right for it.

Choosing the Right BCG Syringe: Market Comparison & Procurement Insights

Key Selection Criteria

Before giving a purchase order, procurement officers should look at five main factors when analyzing intradermal syringe sellers. Here are the things that lead to legal and cost-effective sourcing:

• Regulatory certification: ISO 13485 quality management and CE marking are mandatory baselines for WHO/UNICEF supply chains. Verify that the certificate scope covers syringe manufacturing, not just a parent company.
• Auto-disable compliance: ISO 7886-3 defines the mechanical test for AD functionality. Request third-party test reports, not just manufacturer declarations.
• Dose accuracy: Demand volumetric test data confirming ±5% tolerance at 0.05 ml — the deviation band beyond which BCG efficacy studies show measurable immune-response variance.
• Production capacity: For EPI programs ordering 200,000–1,000,000 units per cycle, confirm that the supplier can complete production within 30–45 days and provide documented capacity evidence.
• Batch traceability: Each production lot should carry a unique identifier linked to raw material certificates, cleanroom records, and EO sterilization logs.

These five things together show if a supplier can keep up with a national immunization schedule with a bcg vaccine syringe without having to stop the program for two months, which has happened in some Sub-Saharan African countries in the past.

AVACARE Procurement Terms

AVACARE (Henan Aile Industrial Co., Ltd.) requires 200,000 units and a 30-45-day manufacturing delay after approval. Government and UN agencies use T/T and L/C to pay for goods. OEM/ODM options enable programs adjust labels and packaging to match national regulations. Ask for sample units before purchasing a lot. Since 2014, the 12,000 m² facility has had Class 100,000 cleanrooms. Hospitals across many continents have used its 7 national patents.

Common Questions and Challenges with BCG Syringes in Immunization Clinics

Most of the time, operational problems in clinics are caused by people misusing tools instead of problems with the products themselves. Most mistakes can be avoided by teaching healthcare workers how to handle an intradermal device differently than a regular needle.

• Needle-stick injury: The auto-disable mechanism reduces reuse risk, but does not replace proper sharps disposal. Clinics should maintain sharps containers within arm's reach at every vaccination station.
• Failed wheal formation: Most commonly caused by inserting the needle at too steep an angle or using a detachable-needle syringe with dead space that consumes part of the 0.05 ml dose.
• Packaging damage in transit: Tropical heat and humidity accelerate peel-foil degradation. Specify moisture-barrier outer cartons when ordering for high-humidity regions.

When these three problems are fixed through training guidelines and buying the right specifications, the number of bad events and complaints in large-scale EPI programs goes down by a lot.

Future Trends and Innovations in BCG Syringe Technology

Micro-Needle and Low-Trauma Designs

Vaccine delivery journals have published research that uses needle gages smaller than 27G and better blade shape to lower the pain scores of intradermal injections in newborn studies. Several companies are testing 28G and 29G designs that keep the durability of the wheal while lowering the force needed to move the tissue. These designs are the next useful step in improving devices for programs that focus on caregiver confidence and baby comfort.

Digital Lot Tracking and Smart Packaging

GAVI-funded projects are asking for more and more supply chain information. Cloud-based lot management systems are linked to QR-coded blister packs. This lets health workers in the field scan each unit, check the batch's authenticity, and record real-time administration data. This level of tracking speeds up safety audits after a campaign and makes them easier to defend when investigations into bad events happen.

Eco-Responsible Disposables

Manufacturers are moving toward biopolymer barrel materials and less plastic packing because of rules in the EU and a number of high-income markets. While fully biodegradable needles are still being worked on, lighter-weight PP formulas and compressed packing are already lowering the carbon load of each shipment, which is now a factor that some UNICEF bids officially count.

Conclusion

It is just as important to choose the right intradermal delivery method as it is to keep the vaccine cold. There are certain technical standards that must be met in order to protect newborn patients and pass WHO/UNICEF provider checks. These include a 27G short-bevel needle, a set volume of 0.05 ml, SAL 10°C sterility, an auto-disable lock, ISO 13485 certification, and CE certification. All of these things are true of AVACARE's bcg vaccine syringe, which ships within 30 to 45 days for orders of 200,000 units or more. Programs that have had supply problems before know how bad it is for the public's health and their image when there is a gap in coverage. The best way to make sure that doesn't happen is to lock in a qualified, audited supplier.

FAQ

Why must a BCG syringe have a fixed needle rather than a detachable one?

A fixed needle eliminates hub dead space. With a detachable needle, the residual volume trapped in the connection joint can absorb 0.01–0.02 ml of the total dose, which is significant when the target volume is only 0.05 ml. A fixed-needle design delivers the full measured dose every time.

What does the short-bevel needle do that a standard bevel cannot?

A standard long-bevel needle is angled for deeper tissue entry. The short bevel allows near-parallel skin entry at 10–15°, keeping the tip within the dermis and preventing subcutaneous placement, which would cause the vaccine to disperse without forming the required wheal.

How do I confirm that an auto-disable syringe is genuinely ISO 7886-3 compliant?

Request the third-party mechanical test report showing plunger lock-out after a single full stroke, not just a certificate copy. ISO 7886-3 specifies that the locking force must prevent re-aspiration under a defined tensile load.

What is the shelf life of the AVACARE BCG vaccine syringe?

Three years from the manufacturing date, provided the blister packaging remains intact and storage conditions stay within 10°C–30°C, away from direct sunlight and moisture.

Can these syringes be used for tuberculin skin testing (Mantoux)?

Yes. The same intradermal delivery geometry supports PPD administration at 0.1 ml for Mantoux testing, making the device dual-purpose in TB surveillance and immunization programs.

Request a Sample or Bulk Quote — AVACARE BCG Vaccine Syringe Supplier

For sale by AVACARE is a bcg vaccine syringe that can be made in 30 to 45 days after the order is placed. Our factory has been open since 2014 and has Class 100,000 cleanrooms. It is ISO 13485 and CE certified and offers full batch tracking, EO sterility validation to SAL 10°C, and OEM/ODM support. To get a sample, detailed datasheet, or low bulk quote, please email our procurement team at admin@aileindus.com or visit ailemedicals.com. We answer within 24 hours.

References

1. World Health Organization. WHO Technical Report Series: Guidelines on the Quality, Safety and Efficacy of BCG Vaccines. WHO Press, 2013.

2. UNICEF Supply Division. Vaccine Syringes: Specifications and Procurement Guidelines for Immunization Programs. UNICEF, 2019.

3. International Organization for Standardization. ISO 7886-3: Sterile Hypodermic Syringes for Single Use — Part 3: Auto-Disable Syringes for Fixed-Dose Immunization. ISO, 2020.

4. Ekwueme, D. U., et al. "Syringe Design and Dose Accuracy in Intradermal Vaccination: A Systematic Review." Vaccine, 2017.

5. PATH. Intradermal Delivery Technologies: A Review of Devices for Vaccine Administration. PATH, 2015.

6. Global Alliance for Vaccines and Immunization (GAVI). Supply Chain and Procurement Strategy for National Immunization Programs. GAVI Alliance, 2021.
